Jeff Edison (Euro308guy)
Member
Username: Euro308guy

Post Number: 412
Registered: 7-2002
Posted on Friday, August 29, 2003 - 2:25 pm:

Thanks Malcom. That's the number I was looking for!
Byron,
Andre has already provided a few carbon fiber parts, (door sill and mirror backs as well as the instrumnet cluster facia) They look dynamite! He actually visited my house here in Memphis; that's right drove all the way from Monteal. He test fitted the prototypes and should have a full interior kit ready in a month or sooner. Stay tuned, I'll post pics.
J
Malcolm West (Ferrari_uk_tech)
Junior Member
Username: Ferrari_uk_tech

Post Number: 78
Registered: 7-2003
Posted on Thursday, August 28, 2003 - 4:34 am:

Jeff,

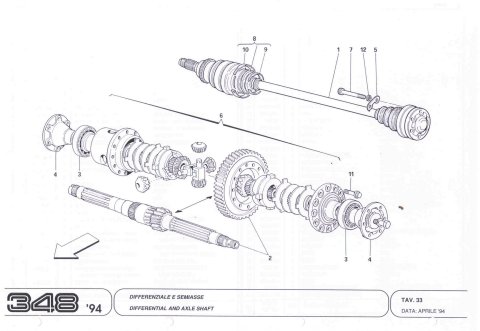

Assuming you're refering to the flange bolts, item #7 in the drawing, the torque setting is
7.8 NM which is 56.42 lbs ft.






MWUpload
Byron (Bmyth)
Intermediate Member
Username: Bmyth

Post Number: 1183
Registered: 10-2002
Posted on Wednesday, August 27, 2003 - 10:09 pm:

ahh... I'd like to know too... I have a CV boot to change out, too!

Hey jeff, how are those CF parts working out for you? I haven't seen the latest - are they installed on the car already?
Jeff Edison (Euro308guy)
Member
Username: Euro308guy

Post Number: 410
Registered: 7-2002
Posted on Wednesday, August 27, 2003 - 10:07 pm:

anybody know the recommended torque values to secure the axle half shafts on a 348? I had to change a ripped boot. Thanks
