Author Message
Jay Morris (Jm3)
Junior Member
Username: Jm3

Post Number: 55
Registered: 10-2002
Posted on Wednesday, October 01, 2003 - 4:54 pm:

Well, I did NOT get it out yet. There is some unseen force still holding it in. I am going to try again tonight.
The seat belts I have are broken, and the new ones I have are slightly different (Japanese GT4)
Will keep you guys posted.
Mitchell Le (Yelcab1)
Member
Username: Yelcab1

Post Number: 686
Registered: 11-2001
Posted on Tuesday, September 30, 2003 - 8:22 pm:

Jay

If you are successful with the seat removal, please tell me. I have been trying but cannot remove the rear seat with just the 2 side bolts removed. It is very tight, and I cannot lift it out. THere must be something else attaching the seat to the frame on my car.
1975GT4Don (1975gt4don)
Junior Member
Username: 1975gt4don

Post Number: 81
Registered: 1-2002
Posted on Monday, September 29, 2003 - 2:36 pm:

Jay Morris, are you changing out your two front seat belts and getting others? If so, are you interested in selling your two old seat belts, both the male and female parts? I would be interested in buying them if they work OK. TIA.
Mike Dawson (Miked)
Junior Member
Username: Miked

Post Number: 127
Registered: 2-2001
Posted on Sunday, September 28, 2003 - 5:53 pm:

Another thing to look at while you are in there is inside of the fender. Pop off the small panel under the side window for access. You can then evaluate the condition of the bodywork under that fancy paint job, I found evidence of accident damage from long ago. Also check for rust up under the quarter window. My car had a sunroof drain that ran down the "B" pillar then dumped into the enclosed area under the quarter window!

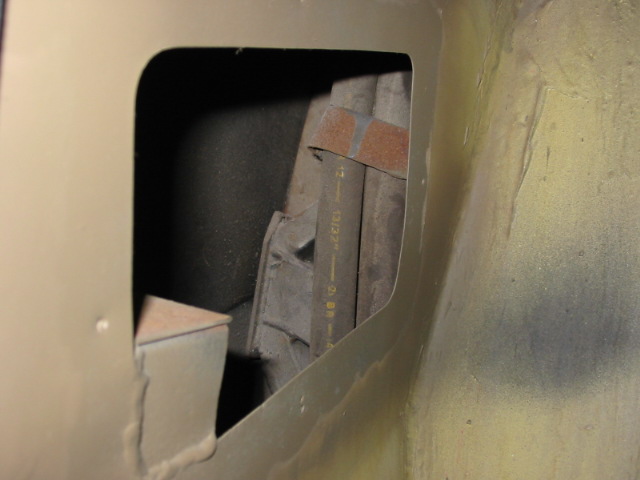

damage
inside
Jay Grande (Jay)
Intermediate Member
Username: Jay

Post Number: 1517
Registered: 10-2001
Posted on Sunday, September 28, 2003 - 7:07 am:

Jay, while you are there you might want to run an extra wire from the fuse box to the engine compartment and leave it disconnected. It will save you alot in the future if you need a new wire.
Jay Morris (Jm3)
Junior Member
Username: Jm3

Post Number: 53
Registered: 10-2002
Posted on Saturday, September 27, 2003 - 10:48 pm:

Great. Thank you VERY much. Tomorrows project. Of course I might have to watch F1 live......
Jay
Mike Dawson (Miked)
Junior Member
Username: Miked

Post Number: 126
Registered: 2-2001
Posted on Saturday, September 27, 2003 - 7:01 pm:

Jay, the seat is easy to remove. There is a bolt, accessed in the side pocket, that screws into the side of the seat on each side (see hole in seat edge in pic). Once the bolts are removed lift the seat up to disengage a lip under the rear window and the seat will come out. You may have to remove the rear headrests to gain enough clearance for the seat to clear the lip. After the seat is removed you will have to drill out some pop rivets that hold on the side pocket in order to expose the seatbelt retracter.

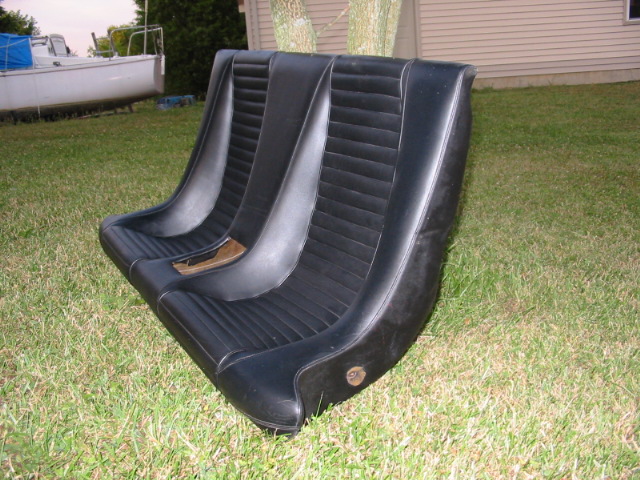

seat

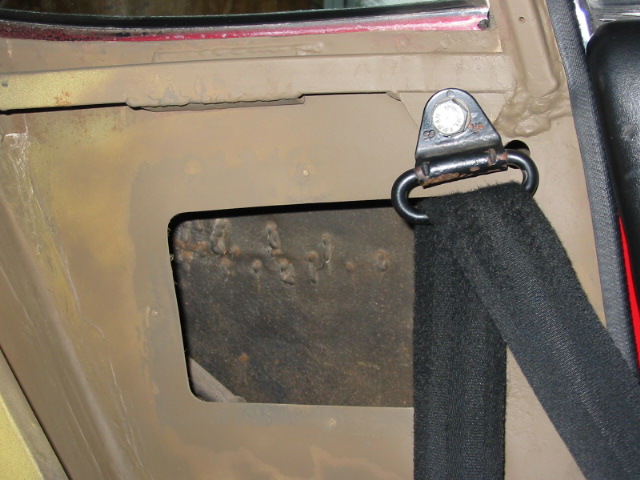

sidepanel

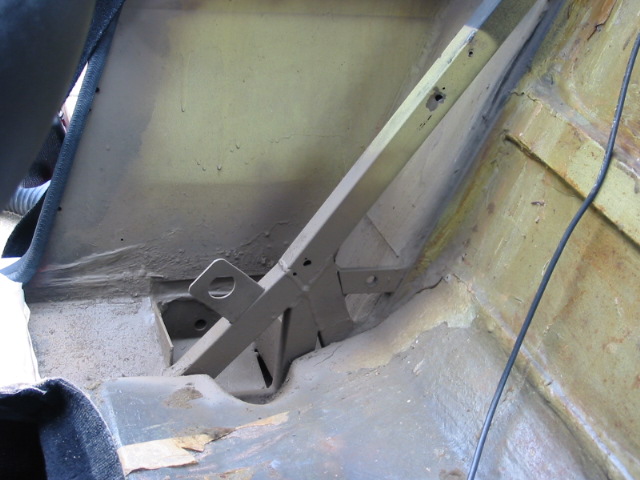

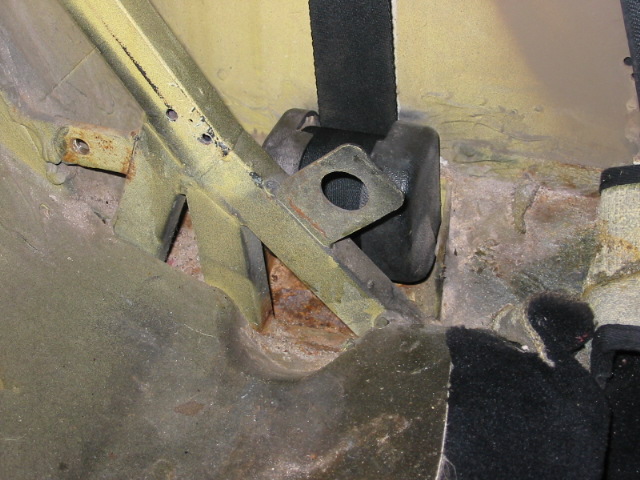

retracter

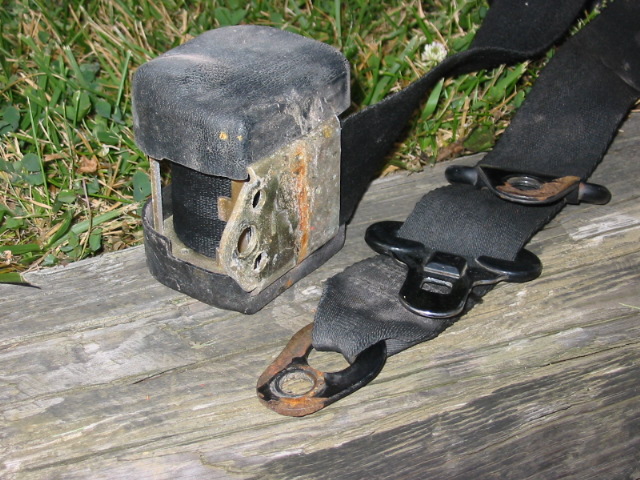

belt
Jay Morris (Jm3)
Junior Member
Username: Jm3

Post Number: 52
Registered: 10-2002
Posted on Saturday, September 27, 2003 - 4:06 pm:

No, I am not looking for Legos and Hot Wheels back there, I am changing out the shoulder harnesses.
Thanks in advance, Jay Morris
