Steven R. Rochlin (Enjoythemusic)
Junior Member
Username: Enjoythemusic

Post Number: 134
Registered: 4-2002
Posted on Thursday, February 13, 2003 - 7:05 am:

Tommy,

You have e-mail :-)

Enjoy the Drive,

Steven R. Rochlin

Dr Tommy Cosgrove (Vwalfa4re)
Member
Username: Vwalfa4re

Post Number: 502
Registered: 5-2001
Posted on Wednesday, February 12, 2003 - 10:32 pm:

I want your fuse map, please.
Steven R. Rochlin (Enjoythemusic)
Junior Member
Username: Enjoythemusic

Post Number: 128
Registered: 4-2002
Posted on Tuesday, February 11, 2003 - 6:35 pm:

Jeff,

:-) If they want to see the fuse map i'll gladly e-mail it to them :-)

Enjoy the Drive,

Steven R. Rochlin

Jeff Edison (Euro308guy)
Junior Member
Username: Euro308guy

Post Number: 221
Registered: 7-2002
Posted on Tuesday, February 11, 2003 - 6:02 pm:

What, Steve? You're not going to show everyone my cute little fuse map?
Jeff Edison (Euro308guy)
Junior Member
Username: Euro308guy

Post Number: 220
Registered: 7-2002
Posted on Tuesday, February 11, 2003 - 6:01 pm:

I did, indeed do this conversion. I bought the fuse panel from NAPA auto parts- it's generic. I then simply transfered the wires and replaced the connectors. Since I did it, no electrical problems with this car, none, never.
Steven R. Rochlin (Enjoythemusic)
Junior Member
Username: Enjoythemusic

Post Number: 123
Registered: 4-2002
Posted on Tuesday, February 11, 2003 - 2:31 pm:

Hi Everyone,

Seen here is what Jeff Edison did to the 1985 Euro 308GTS QV . Seems to me he used something from, say, VIP Auto or other source and made his own that uses normal glass fuses. Hopefully Jeff will chime in here.

As i see it, the stock unit offers a much smaller contact area plus employs non-standard (per se) fuses. What Jeff did offers a higher contact area and (possibly) better secures the fuse into the holder.

Enjoy the Drive,

Steven R. Rochlin

PS: As always, if you a larger photo e-mail me. Usually the file size is under 1MB for larger, highly detailed photo.




Upload

Hans E. Hansen (4re_gt4)
Member
Username: 4re_gt4

Post Number: 852
Registered: 4-2002
Posted on Tuesday, February 11, 2003 - 2:16 pm:

Just did my fuse boxes. I got the white one from Rutlands, for about $140ish, as I recall. It's available elsewhere for a little less.

Even with a new box, BE SURE TO SOLDER *ALL* CONNECTIONS. Although I didn't replace the black box, I did remove it and SOLDERED EVERYTHING. If you do this, you won't have any further problems.
Steve Magnusson (91tr)
Intermediate Member
Username: 91tr

Post Number: 1407
Registered: 1-2001
Posted on Tuesday, February 11, 2003 - 9:38 am:

Thanks Jeff -- the more troublesome side IMO... (although the multiple riveted male spades on the front side can be problematical too IME...)
Jeff Howe (Ferrari_uk)
Junior Member
Username: Ferrari_uk

Post Number: 101
Registered: 12-2002
Posted on Tuesday, February 11, 2003 - 9:23 am:

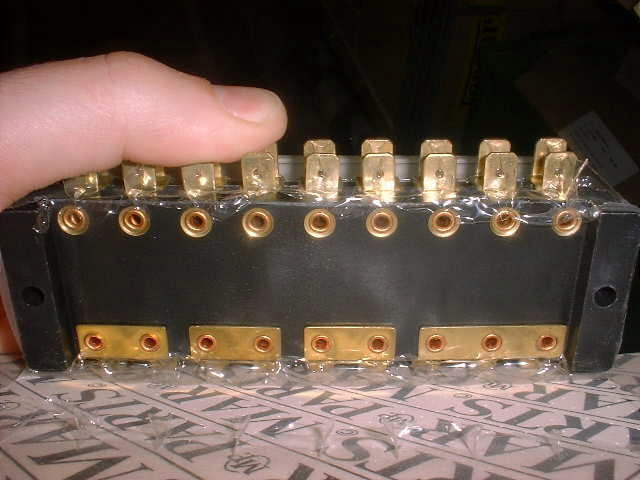

91tr - Rear view of both fuseboxes as requested.

JH
Upload
Upload
Paul (Pcelenta)
Member
Username: Pcelenta

Post Number: 269
Registered: 7-2002
Posted on Monday, February 10, 2003 - 2:08 pm:

2 years ago I paid $80 bucks for one...so now they are going for $160 for one?...for that POS!! what a joke!
Steven R. Rochlin (Enjoythemusic)
Junior Member
Username: Enjoythemusic

Post Number: 118
Registered: 4-2002
Posted on Monday, February 10, 2003 - 1:35 pm:

Hi Everyone,

As i recall, Jeff Edison (Euro308guy) updated the fuse box on the (now mine, was Jeff's) Euro 1985 308GTS QV. Am not home to take photos, yet can supply photos tomorrow and, hopefully, a source where to buy the newer (better) fuse boxes. Thanks for your patience.

Enjoy the Drive,

Steven R. Rochlin


Mark (Markg)
Member
Username: Markg

Post Number: 384
Registered: 2-2001
Posted on Monday, February 10, 2003 - 10:45 am:

Just did both boxes...$160.00 each; same flawed design as 20 years ago, Ferrari has done nothing to update the design....
Steve Magnusson (91tr)
Intermediate Member
Username: 91tr

Post Number: 1401
Registered: 1-2001
Posted on Monday, February 10, 2003 - 10:34 am:

Randall -- There is no "blade"-fuse type equivalent 308 fusebox available that I'm aware of. Even if you could find a generic blade fuse holder with the right number of fuse positions you'd also need to fabricate the input and output power distribution "circuits" that the plates/rivets on the back of the stock 308 fusebox provides so this is not a trivial project. (Jeff H. -- Can you put up a shot of the 308 fusebox backside?)
Jeff Howe (Ferrari_uk)
Junior Member
Username: Ferrari_uk

Post Number: 99
Registered: 12-2002
Posted on Monday, February 10, 2003 - 10:21 am:

Hi all.

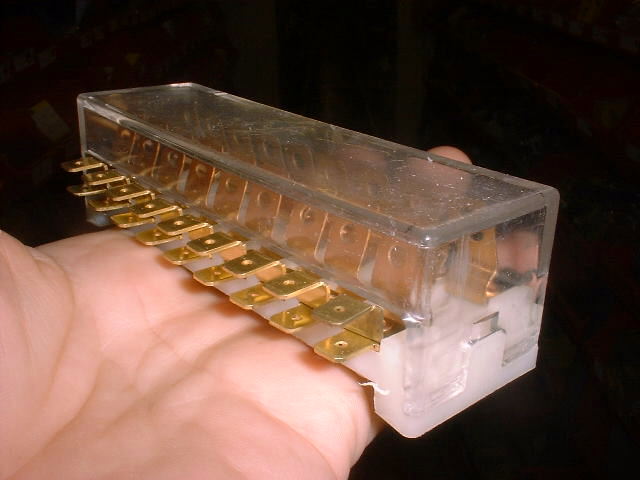

We have both types of fuse boxes in stock. Looked on the Owners' Site for 308 USA carb...

40197006....Black box
40196909....Clear box

Both 63.10.......about $103.00 + shipping + taxes
Hope this helps.

Upload
Upload
Randall Booth (Randall)
Junior Member
Username: Randall

Post Number: 68
Registered: 1-2003
Posted on Sunday, February 09, 2003 - 2:14 pm:

Anyone replace the fuse box with a newer type? I can't seem to find an arrangement that is the same in the blade setup. I wouldn't mind switching over to that style fuse and fuse block out of convenience.
Matt Lemus (Mlemus)
Intermediate Member
Username: Mlemus

Post Number: 1882
Registered: 8-2002
Posted on Sunday, February 09, 2003 - 1:48 pm:

I agree. The car does not nickel and dime you, it $50 and $100's you.
Bruno (Originalsinner)
Member
Username: Originalsinner

Post Number: 938
Registered: 5-2002
Posted on Sunday, February 09, 2003 - 1:47 pm:

U know at these prices a 308 should either be worth 100k or nothing.
Matt Lemus (Mlemus)
Intermediate Member
Username: Mlemus

Post Number: 1880
Registered: 8-2002
Posted on Sunday, February 09, 2003 - 1:45 pm:

There are some on Ebay for $150 or something close to that
Bruno (Originalsinner)
Member
Username: Originalsinner

Post Number: 934
Registered: 5-2002
Posted on Sunday, February 09, 2003 - 1:35 pm:

Anybody buy one recently. From whom? How much and how original. Need for78gtb.
