| Author | Message | ||
| Heiko (Hgparts)
New member Username: Hgparts Post Number: 19 Registered: 3-2003 |
hi guy by the way when you like to put in an KN in the stock Airbox of the 308Cab take E2930 that fits perfect and no need to change anything heiko hgparts | ||
| Russ Gould (Russ)
New member Username: Russ Post Number: 4 Registered: 2-2003 |
I believe it was part no 56-1350, and the airhorns will fit inside the filter. I got them from a website I think it was K&NFilters.com or some such, for about $50 each. | ||
| Peter Cyr (Pete04222)
New member Username: Pete04222 Post Number: 20 Registered: 6-2002 |
Russ Gould, Which 3 1/4" oval filter? K&N has 3 different ones for the 40DCNF carb. Please read my posts below. Which one fits the 308? I would really like to try a set out. | ||
| Russ Gould (Russ)
New member Username: Russ Post Number: 3 Registered: 2-2003 |
Guys, the 3 1/4" oval units fits and clears the bonnet. You can mount your trumpets inside them with the pillars from the rubber gaskets on the stock unit. My airbox, needs repair for rust near the throat, is for sale for half the price of a replacement, [email protected]. I think I get better breathing, not sure about HP, sure looks and sounds GREAT! | ||
| Russ Turner (Snj5)
New member Username: Snj5 Post Number: 9 Registered: 2-2003 |
Pete Thanks - I saw the 90 degree note on the filter listing. Pretty interesting. If it is what I think it is, that type of filter mount is not uncommon on sidedraft DCOEs, but never seen it on a downdraft. Would have to see to better understand measurements. best rt | ||
| Peter Cyr (Pete04222)
New member Username: Pete04222 Post Number: 19 Registered: 6-2002 |
Well, they also have a 4.5"x7" that is only 1.25" tall and a 5.5"x9" that is 2" tall and that is turned 90 degrees to the base of carburetor flange. | ||
| Russ Turner (Snj5)
New member Username: Snj5 Post Number: 8 Registered: 2-2003 |

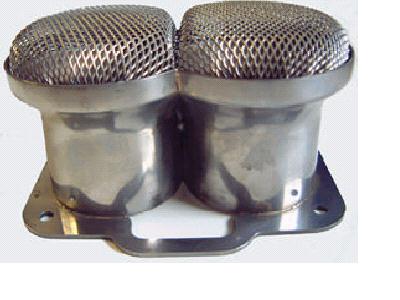

Pete - not decided, but may get a stock airbox with a K&N to allow cool air ram. I understand these airboxes are not so common to locate. The Weber dcnf specific K&N filters look like they could be used with air horns, but bonnet clearence may be an issue (similar pictured below). Anyone out there run these? best, Russ  | ||
| Peter Cyr (Pete04222)
New member Username: Pete04222 Post Number: 18 Registered: 6-2002 |
Hey Russ, what K&N filters did you get? I looked up their website (http://www.knfilters.com/default.htm) and they have 5 different ones for the 40DCNF. 3 of them are 3.25" tall. A 4.5"x7", a 5.5"x9" and a 5.5"x9" that has the oval filter assembly turned 90 degrees to the base of carburetor flange (4 stud base) | ||
| Dan B. (Dan_the_man)
Junior Member Username: Dan_the_man Post Number: 96 Registered: 9-2002 |
I bought a set or Sumitomo Tires from Tirerack.com in 205/70/14. they are great tires for the price. I got them on a Friday and mounted them then went to the track on saturday. I ran 50 psi (they are rated at 51 psi) and they did great. especially for a 70 series 14" tire. Shipping and all they cost me $48 a tire. Check them out here. http://www.tirerack.com/tires/Compare1.jsp?startIndex=0&width=205%2F&ratio=70&diameter=14&search=true&pagelen=20&pagenum=1&pagemark=1&do=Search&manufacturer=Sumitomo | ||
| Verell Boaen (Verell)
Member Username: Verell Post Number: 589 Registered: 5-2001 |

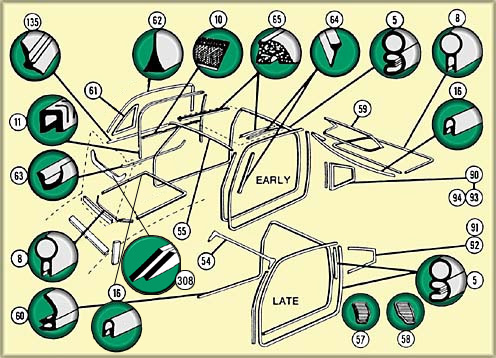

Jerry, Just picked it up from FerrariPartsExchange's site: http://www.ferraripartsexchange.com/308Rubber.htm They have rubber for quite a few F* models. Just don't show the door weatherstripping(sigh). | ||
| RANDOLPH MADAMBA (Pogibm)
New member Username: Pogibm Post Number: 39 Registered: 8-2002 |
Russ try the ITG filters, i've used them on my Boxer for years. The velocity stacks can be used inside the filter. | ||
| Russ Turner (Snj5)
New member Username: Snj5 Post Number: 5 Registered: 2-2003 |
Matt With the Alfa (1750, twin 40DCOE, ram stacks with mesh) I never had a problem on the street. I did most daily driving with some K-Mart (pre-Walmart and pre K&N) elastic fine weave baby socks ($2) over the trumpets . With the Ferrari I plan for the airbox/K&N as I think the warm airflow patterns in the engine compartment are not as good as the cool air ram from the side. Had looked at combining the two, but not really worth the fabrication effort. But, absolutly nothing looks as or sounds as impressive than a brace of webers with ram stacks. See any vintage Ferrari book.  Best to all Russ | ||
| Jerry H (Jerry)
Junior Member Username: Jerry Post Number: 154 Registered: 3-2001 |
Hey Verell where did you get the diagram you posted? Any more accompaning info for it? I want it to keep in my archive. | ||
| Matt Lemus (Mlemus)
Advanced Member Username: Mlemus Post Number: 2585 Registered: 8-2002 |
Russ, Are you not worried about junk getting into the carb? Seems like the mesh would allow pretty much every thing in the carbs | ||
| Russ Turner (Snj5)
New member Username: Snj5 Post Number: 3 Registered: 2-2003 |
Am looking for a carb airbox soon as well - where have you looked? I have found a cold air induction box, but may be too tall. See: http://www.twminduction.com/airbox.htm The cold air intake piece is important (colder air, more O2 molecules) - if not, would have considered running just meshed air horns with baby socks (did this on a set of 40DCOEs on an Alfa years ago - great breathing and what a sound ). best to all Russ  | ||
| Matt Lemus (Mlemus)
Advanced Member Username: Mlemus Post Number: 2565 Registered: 8-2002 |
Tazio You are correct. YO stands for Yokohama | ||
| Tazio Nuvolari (Nuvolari)
Junior Member Username: Nuvolari Post Number: 143 Registered: 9-2002 |
Russ, Are you sure on the part number for those tires. I did a search and cannot find a tire made by Toyo with that part number. YO A321 sounds like a Yokohama tire. It is a fantastic tire for the 14" rim but has not been available for a couple of years now. | ||
| Verell Boaen (Verell)
Member Username: Verell Post Number: 580 Registered: 5-2001 |
 Sorry, posted this to the wrong thread & don't know how to delete it. | ||
| Bruno (Originalsinner)
Member Username: Originalsinner Post Number: 984 Registered: 5-2002 |
You will lose hp without the airbox hooked up to the side vent hose. However as far as looks I've seen the set up. It is cool. U should post a pic. | ||
| Russ Gould (Russ)
New member Username: Russ Post Number: 2 Registered: 2-2003 |
Ever tried to replace an air box on a carb car, the most expensive piece of sheet metal in autodom? They can rust through as they tend to ingest moisture. Save yourself a heart attack, buy the K&N "custom" individual units, I think the 3.5 inch high units are the ones, they look great (showcase all those Webers!), fit perfectly and allow you to tune your carbs with the units in place. You can get them online for about $200 the set of 4 (twice that price at your local stockist). You will also need a K&N crank breather filter, to fit the breather pipe, about $20. Tip: save the little pillars from inside the rubber gaskets in the original air box, you will need those as spacers for the trumpets which sit inside the K&N filters. Now tires. Toyo makes a 205/70VR14 number YO A321, part no 07VR4321 from Tire Rack, South Bend IN 800 428 8355. $85 each, replace the whole set for the price of one Michelin (lousy tires anyway). I have not run these Toyos on the track so can't tell you how they perform but my wallet sure feels great. Any more new generics out there? (above what is already posted at www.ferrarichat.com/partsandservice/308PartsXref/index.htm ?) |
