Author Message
Jeff Howe (Ferrari_uk)
Junior Member
Username: Ferrari_uk

Post Number: 200
Registered: 12-2002
Posted on Wednesday, April 09, 2003 - 10:10 am:

JRvall - send me the relevant details and I'll pass them to Italy. Include the reason it won't let you register.

JH
JRV (Jrvall)
Intermediate Member
Username: Jrvall

Post Number: 1251
Registered: 11-2002
Posted on Wednesday, April 09, 2003 - 9:21 am:

JEFF HELP...

I read where someone else was trying & trying to register with no luck...I'm also having the same problem registering with the site..about 6 tries so far and no replies....HELP...please...

Carmine Nicoletta (Ncarmine)
Junior Member
Username: Ncarmine

Post Number: 70
Registered: 6-2002
Posted on Wednesday, April 09, 2003 - 8:54 am:

Jeff, you are the man! I'll send you an email.

Thanks!
Jeff Howe (Ferrari_uk)
Junior Member
Username: Ferrari_uk

Post Number: 198
Registered: 12-2002
Posted on Wednesday, April 09, 2003 - 5:23 am:

Hi Carmine...

Sorry - your enquiry worked its way to the bottom of the pile ! Thanks for reminding me. Don't want anyone to think they're missing out !

I can't find in any 328 book the stick-on vinyl sheet.

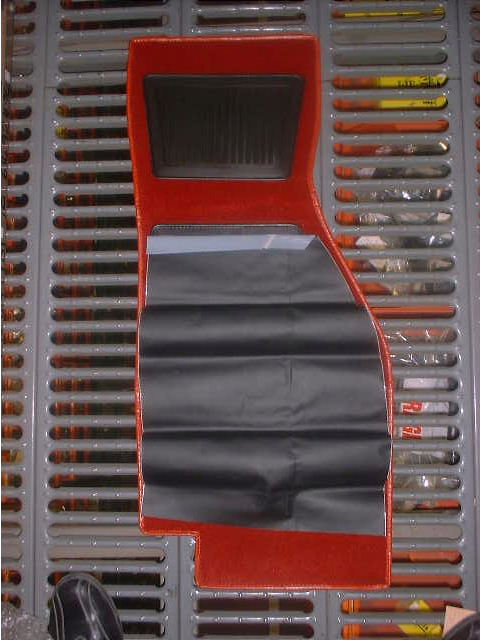

I've taken out of stock the part numbers for the 308 plastic sheet you have posted and laid one out onto a 328 floor mat, 62367491. The attached picture shows how well the two go together. I understand that the two floor pans from the 308 and 328 are not too far removed from each other anyway.

Also the carpet I've used hasn't made it's way to the Owners' Site parts site but is listed on our system for 328.

The stick-on sheet doesn't look great because it has been stored rolled up but is in perfect condition aside.

I hope this helps.
Upload
Jeff Edison (Euro308guy)
Member
Username: Euro308guy

Post Number: 303
Registered: 7-2002
Posted on Wednesday, April 09, 2003 - 12:52 am:

Check with Steve Rochlin. He has the euro parts manual. Perhaps it will say differently than the FoUK online manual. I've passed on all the 308 manuals I had to Steve.
Steve, can you help out here?
Carmine Nicoletta (Ncarmine)
Junior Member
Username: Ncarmine

Post Number: 69
Registered: 6-2002
Posted on Tuesday, April 08, 2003 - 11:21 pm:

The fiberglass floors (both passenger and driver side) of my 86 328GTB are covered with a black vinyl. My Spare Parts Manual 462/87 TAV116 lists these as part numbers 61597100 RH front adhesive LHD, and 61597200 LH front adhesive LHD. The FoUK online manual, Figure 1 does not list the at all. Anyone know why? Figure 2 is from the 84-85 USA 308 QV parts and it lists the parts for the 328. There's also 61967800 (2) self adhesive carpet under the seats. I'm trying to replace these. I also need the front carpets 60744300 and 60143104.

Jeff can you help?

Upload

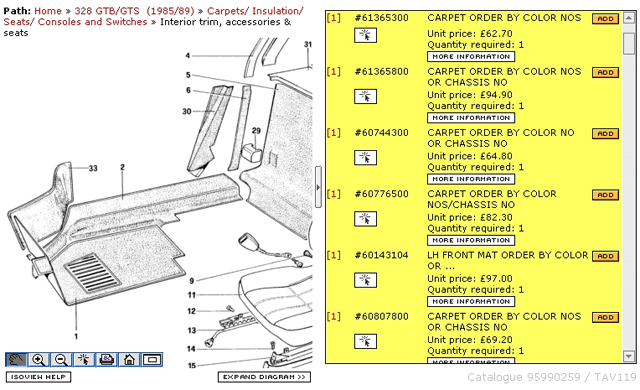

Figure 1
Upload

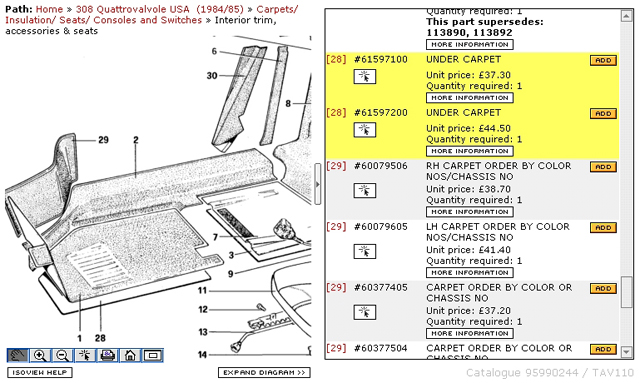

Figure 2
