Manfred Heger (Mondi991)
New member
Username: Mondi991

Post Number: 39
Registered: 4-2003
Posted on Monday, April 21, 2003 - 3:35 am:

Hi Tim,
I think you haven�t the Workshop manual?

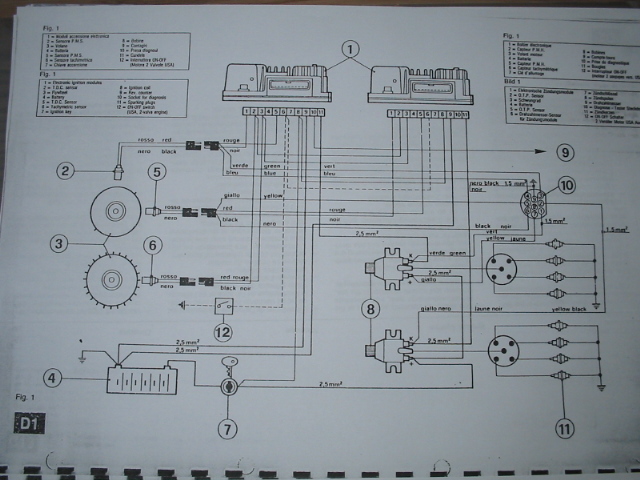

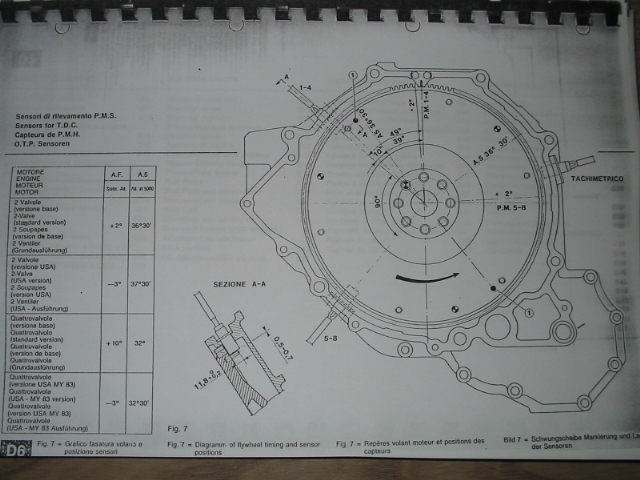

I�ve got some pictures out of mine( but from a Mondial 1984 ( should be the same like yours).
There you can see which sensors belongs to what.
Best Regards ManfredUpload
Upload
Tom Jones (Ferrarioldman)
Junior Member
Username: Ferrarioldman

Post Number: 104
Registered: 6-2002
Posted on Sunday, April 20, 2003 - 8:50 pm:

The sensor facing the rear of the car (or your right) is the RPM sensor. Upper left is 1-4 bank.
Tim Worley (Tworley)
New member
Username: Tworley

Post Number: 9
Registered: 3-2003
Posted on Sunday, April 20, 2003 - 2:23 pm:

Question, I have three sensors, two for the ignition triggers and one for the RPM. I just want to make sure, as the engine is viewed from the drivers� side wheel well. Is RPM sensor the lowest to the left, 5-8 trig. to the upper left and 1-4 trig. on the right? This is what made sense one connector had an "8" and the other had a "4". I'm assembling a car I didn't take apart. If some one had some shots of their engine bay that would be great.

Thanks in advance!
