| Author | Message | ||
| Manfred Heger (Mondi991)
Junior Member Username: Mondi991 Post Number: 53 Registered: 4-2003 |
Thanks David, but I haven�t ever seen glassfuses for a car here in Germany?! | ||
| david handa (Davehanda)
Member Username: Davehanda Post Number: 672 Registered: 5-2001 |
Manfred, While you are doing all of this, you might wish to upgrade the fuses to the glass type. Not sure what brands are sold in Germany, but in the States we have a brand called Buse, that are glass with stainless steel end caps. They make a direct substitute for the ceramic ones, and are make much better electrical contact than the often corroded ceramic type. Clean all the metal tabs on the fuse box with contact cleaner and a Scotchbrite pad. Then gently bend the tabs closer together for a tighter fit. A great tip from Tony Pallidino in a back issue of Forza magazine a few years ago.... Regards, Dave | ||
| Manfred Heger (Mondi991)
Junior Member Username: Mondi991 Post Number: 52 Registered: 4-2003 |

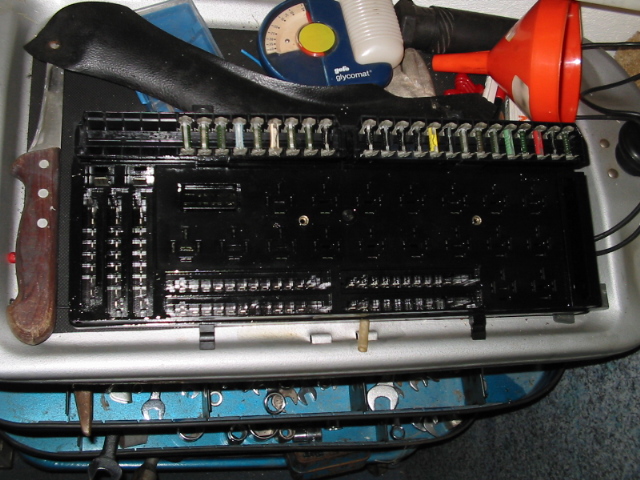

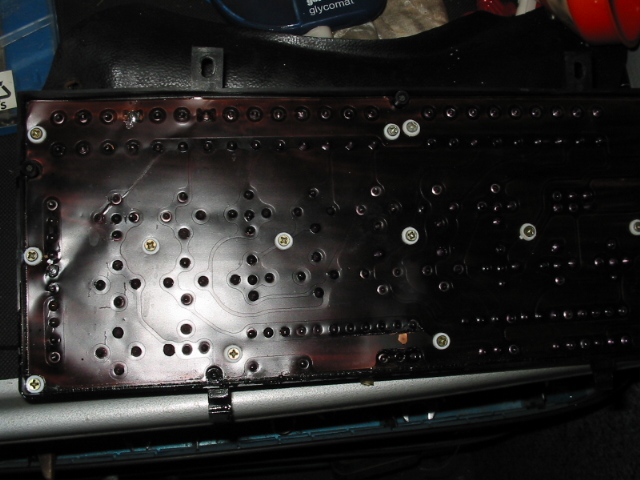

Greg, This morning I removed all relays and connectors and looked for the back of the fusebox.obvius there have been two pins which got bad contact ( getting to hot once a time) belonging to the circuit of the fuelpump. I soldered them for new, checked all relays under load, and replaced it all.All Relays did work fine, but some haven�t been on the coorect place. It seems to be a little bit better than before. Now I have only two faults. The front foglights doesn�t work ( seems to be the switch) And if Ignition is switched off, the beamers come out and one Relay begins to sqeak.???? For the Moment I got no time to look for it, will do next time    | ||
| Greg Owens (Owens84qv)
Member Username: Owens84qv Post Number: 773 Registered: 10-2001 |
Manfred, You can download your manual(s) from here: http://ferrari.stevejenkins.com/books/ If you have any questions, email me or post your question. -- Greg | ||
| Manfred Heger (Mondi991)
Junior Member Username: Mondi991 Post Number: 51 Registered: 4-2003 |
Thank you very much Greg , the Link you gave to me is all informations including I was searching for. Hope to get all OK tomorrow Thanks | ||
| Manfred Heger (Mondi991)
New member Username: Mondi991 Post Number: 50 Registered: 4-2003 |
Hi Greg, I�d be very glad if you could do so, so I haven�t to wait so long. Thanks Manfred | ||
| Greg Owens (Owens84qv)
Member Username: Owens84qv Post Number: 768 Registered: 10-2001 |
Manfred, there is a website (can't remember the link) where you can download the manuals for free. Else, I can send you the 1-2 pages from mine in a PDF file tonight. | ||
| TomD (Tifosi)
Advanced Member Username: Tifosi Post Number: 3422 Registered: 9-2001 |
aren't those fuse boxes a thing of beauty  | ||
| Manfred Heger (Mondi991)
New member Username: Mondi991 Post Number: 49 Registered: 4-2003 |
Hi Greg, I�m going to wait till I have my manual,thanks for your proposal,I�will do so next week. Regards Manfred | ||
| Manfred Heger (Mondi991)
New member Username: Mondi991 Post Number: 48 Registered: 4-2003 |
Hi Tom, for the moment I have no owners manual(is ordered since two weeks), so I can�t control it:-( I think I�ll get it next week. | ||
| Greg Owens (Owens84qv)
Member Username: Owens84qv Post Number: 766 Registered: 10-2001 |
Manfred, There are three (2) primary types of relays used (at least for my '84 308QV)...with one or two odd-ball relays used only once. Between the numbers that are stamped on the relays themselves and your Owners Manual which diagrams which relay in which location, that should be enough to replace in the correct position. Get a piece of paper and diagram the relay locations. Replacing one-by-one and double checking your documentation, that should get you through this issue. | ||
| Tom Jones (Ferrarioldman)
Junior Member Username: Ferrarioldman Post Number: 108 Registered: 6-2002 |
Some owner's manuals actually show the Bosch relay # for each location of the relays in the electrical section of the manual. Can't remember if your has that or not. | ||
| Manfred Heger (Mondi991)
New member Username: Mondi991 Post Number: 46 Registered: 4-2003 |

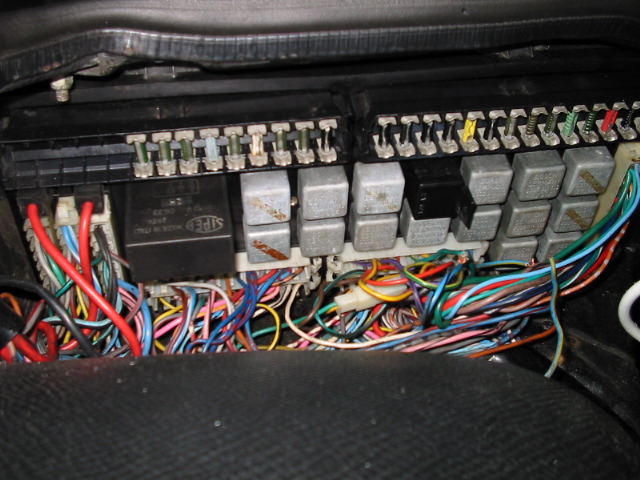

I�ve made a silly fault, when checking my Fusebox, I removed all Relays Thinking they would be all the same type. So it isn�t. After replacing the relays I got a lot of electrical Gremlins. Heaterfan isn�t working anymore, Glasslifters go down when switching on the lights, and somethings more going wrong. I�d be happy if someone could give me an prescription which type of relay would belong to which socket. Thanks Manfred(Mondial QV 84)  |
