348 Right hand cam bank electrical plug

Log Out | Topics | Search Moderators | Edit Profile

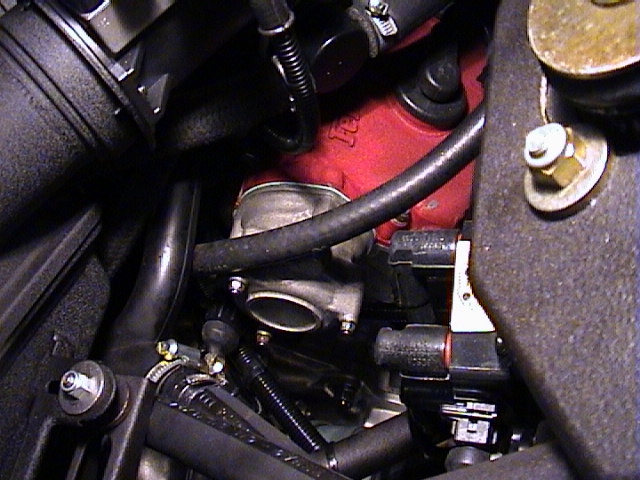

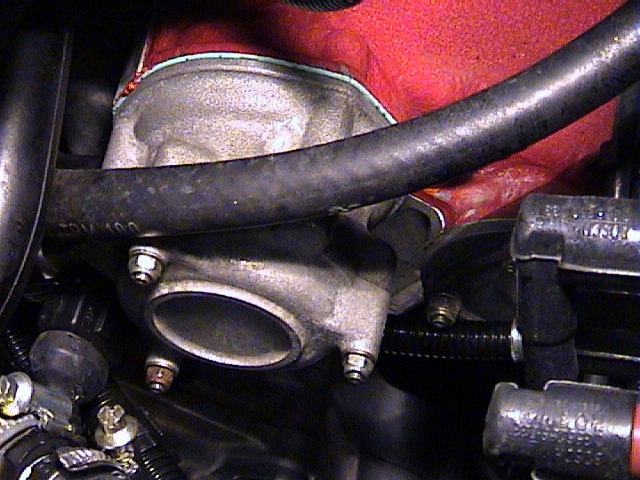

Author Message Dave Penhale (Dapper) Member Username: Dapper Post Number: 698 Registered: 4-2002 Posted on Monday, June 02, 2003 - 12:03 pm:    Thanks Rob, Here are the pics for anyone elses ref in any case, thanks guys, like I say it seemed to drive one work trip without it connected, it was more intrigue Rob Schermerhorn (Rexrcr) Member Username: Rexrcr Post Number: 624 Registered: 11-2002 Posted on Monday, June 02, 2003 - 9:34 am:    Phase sensor. It is important to ignition/ injection timing. It is a reference signal to tell the ECU when TDC on cylinder 1 is. There is a default mode which enables the engine to continue to operate without this signal. Dave Penhale (Dapper) Member Username: Dapper Post Number: 695 Registered: 4-2002 Posted on Monday, June 02, 2003 - 8:50 am:    Thanks Jeff, I'll see what I can get, although my digital picture capability is poor as its only a still shot from what is primarily a digital 'video' camera so only 1Meg res! Jeff Edison (Euro308guy) Member Username: Euro308guy Post Number: 359 Registered: 7-2002 Posted on Monday, June 02, 2003 - 8:10 am:    Dave can you post me a pic of this? I might be able to help. Jeff Dave Penhale (Dapper) Member Username: Dapper Post Number: 692 Registered: 4-2002 Posted on Monday, June 02, 2003 - 4:27 am:    Jusi interested in what service/monitor the electrical plug handles on the block fitted to the rear of the right hand cam bank? I've just had my car back from a main F agent after oil leak rectification and found this plug connector hanging down on the inner drive shaft cv joint, luckily it hadn't caught on a socket head capscrew and got torn around! What does the connector do because with it unplugged I noticed nothing untoward with the car to drive, or any lights in the cabin.
