| Author | Message | ||
| Verell Boaen (Verell)
Intermediate Member Username: Verell Post Number: 1024 Registered: 5-2001 |
Jonathan, These will work in your car. The '77s use the same plastic lever bezel for temp,vent,&choke. The lever bezel mfg. changed small details of the molding as production progressed from year to year, but the temp & vent part #s didn't change thru the end of the QV run in '86. The 400/400i/412 also used them. Some of them didn't have the 2nd square hole you see in the picture is all. The only metal is the chrome plating, underneath it is plastic, also, the amount of the part that was chrome plated decreased over the years. After all, the only area that needs to be plated is the visable rim around the top. The base bezel (w/o lever or lable) is the part I mfg. However, I can't match Jeff's prices on these. Wish I could. The vent control is white with black letters. Pretty simple actually. I've got some good digital photos of the vent & temp lables & can make up artwork. I need to find a company to silk screen & then punch lables out. | ||
| Jonathan (Birdman)
Junior Member Username: Birdman Post Number: 104 Registered: 6-2003 |
Now that I look at the pics more carefully I realize that these are different from the ones on the '77 which have more metal in them. Do you have ones for the '77? Jonathan | ||
| Jonathan (Birdman)
Junior Member Username: Birdman Post Number: 103 Registered: 6-2003 |

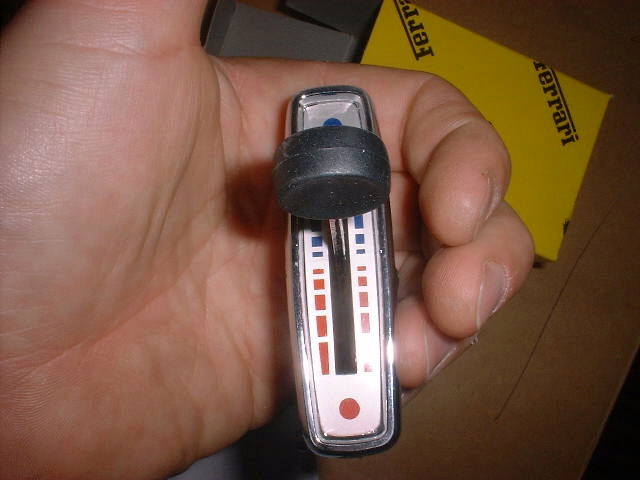

OOOH!! I need two of those too! Jeff, do you have them with different decals on them? On my '77 GTB, I'm missing the center and right hand heater controls. I think the center control is supposed to have the diagram of hot/cold as pictured below, but the right hand one is supposed to have a diagram depicting the flow of air through the vents. (Not sure because my controls broke and were removed by the previous owner.) Please let me know if you have them and what the part #'s are...I'm working on another Ferrari UK order. (You know, we could abbreviate that to FUK for simplicity but I suppose that isn't very PC.....) Thanks for the help, Jonathan | ||
| Barney Guzzo (Trinacria)
Member Username: Trinacria Post Number: 351 Registered: 8-2002 |
Jeff I will actually get 2. I sent you an e-mail. Please process my order. Thanks! Barney | ||
| Jeff Howe (Ferrari_uk)
Member Username: Ferrari_uk Post Number: 470 Registered: 12-2002 |
Barney - You'll get this...in a little yella box !!   | ||
| Barney Guzzo (Trinacria)
Member Username: Trinacria Post Number: 350 Registered: 8-2002 |
Malcolm Thanks. Just to be clear, if I order 60548200, I get the whole assembly? That was not clear on the diagram. The decal may be different - no problem. | ||
| Malcolm West (Ferrari_uk_tech)
New member Username: Ferrari_uk_tech Post Number: 19 Registered: 7-2003 |

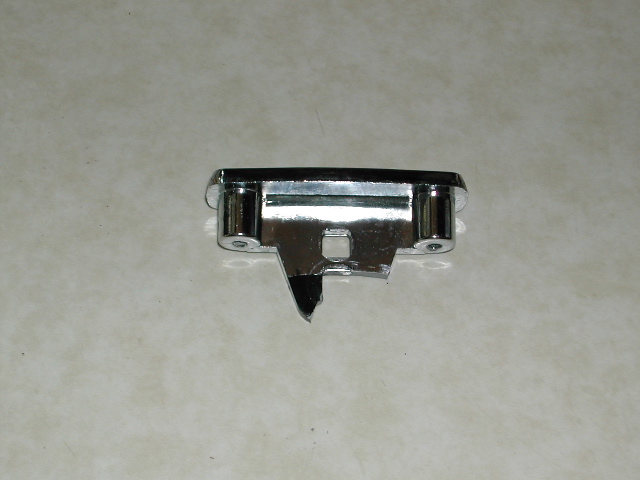

This is the lower part of a choke lever / heater control assembley. The part number for the heater control is 60548200. You can either replace just the lower part or in replacing the complete lever you may have to carefully swap over the decal if it is different to the original We have them in our warehouse $35 plus shipping | ||
| Barney Guzzo (Trinacria)
Member Username: Trinacria Post Number: 348 Registered: 8-2002 |
TAV113 308 GTBi 1981 USA I see parts in the diagram but I am having trouble figuring out which part number it is. Anyone help? Thanks  |
