FerrariChat.com » Technical Q&A Archives » Archive through August 05, 2003 » 348 speciale - do I need spacers with 355 rims? « Previous Next »

Author Message
Paul Hill (348paul)
Member
Username: 348paul

Post Number: 353
Registered: 12-2002
Posted on Saturday, August 02, 2003 - 5:28 pm:

For reference:

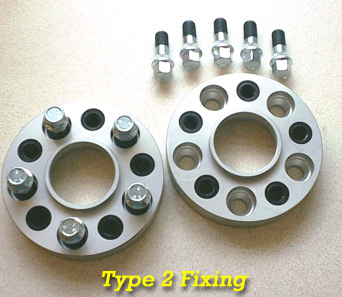

Bolt on type spacers

Upload

Paul
Ben Cannon (Artherd)
Member
Username: Artherd

Post Number: 673
Registered: 6-2002
Posted on Saturday, August 02, 2003 - 5:19 pm:

If you guys go with 25mm spacers, I recomend you get "adapter'" type hub-centered spacers. They are stronger and less prone to failure.
Noelrp (Noelrp)
Member
Username: Noelrp

Post Number: 295
Registered: 8-2001
Posted on Friday, August 01, 2003 - 6:28 pm:

You have two options.

1. Use them w/o spacers but you need to get shorter lug bolts (same length as the front).

2. Use the factory lugbolts & add spacers (25mm I think).

In my case with Challenge wheels, I have H&R 15mm spacers/bolts (rear only) and I like it. I may upgrade to 25mm someday.

-n
Paul Hill (348paul)
Member
Username: 348paul

Post Number: 352
Registered: 12-2002
Posted on Friday, August 01, 2003 - 6:07 pm:

Dave,

The 355 wheels will fit on your 348 without spacers but due to the additional 25mm offset that your stock rear "special" wheels have, the 355 wheels on the rears will sit in from the arch compared to what you have at present.

I usually supply 15mm spacers all round for customers who want to put 355 wheels with spacers on the 348 � I think Martin has a 348 with 355 wheels and spacers on.

One other thing to check is the length of the wheel bolts, the 355 uses bolts with 52mm under the head.

Hope this helps

Paul
www.hill-engineering.co.uk
Ferrari Chat Sponsor

Mister Jones (Davey_jones)
Junior Member
Username: Davey_jones

Post Number: 71
Registered: 9-2002
Posted on Friday, August 01, 2003 - 5:08 pm:

I am considering changing to the 355 style rims.
I know the speciale series has a slightly wider track. SO my question is... do I need spacers? If so what size??

dave
