| Author | Message | ||
| Tillman Strahan (Tillman)
Member Username: Tillman Post Number: 581 Registered: 11-2001 |

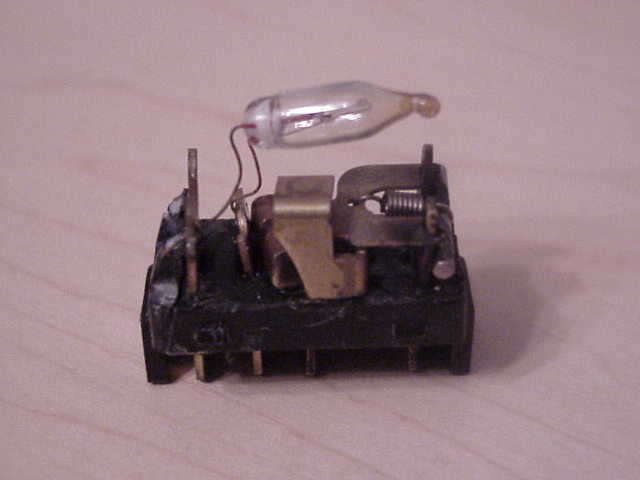

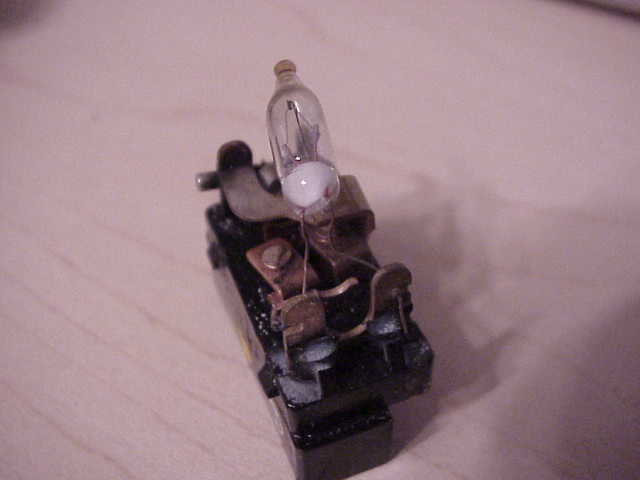

Here's some pics from the interior of the switch. It will require soldering to replace the bulb, but doesn't look hard. The trick will be sourcing the bulbs.   | ||
| Jim E (Jimpo1)
Intermediate Member Username: Jimpo1 Post Number: 1733 Registered: 7-2001 |
It is, James did it for me when my car was in last time. Actually, he got them to WORK, not sure if he replaced a bulb or not. He did say that they were replaceable, but required some soldering. | ||
| Tillman Strahan (Tillman)
Member Username: Tillman Post Number: 579 Registered: 11-2001 |
Thanks everyone for the assistance. based on this info, there's definitely something miswired in the console. Fun. Fortunately, Ferrari UK has the console harness in stock, so this is looking like a mostly minor inconvenience. Jim, FYI, the bulbs are actually integrated into the switches. I'll pull the melted one apart and we'll see if it's actually a replaceable part. | ||
| Jim E (Jimpo1)
Intermediate Member Username: Jimpo1 Post Number: 1728 Registered: 7-2001 |
Mine won't come up easily, but I tried! | ||
| Carmine Nicoletta (Ncarmine)
Junior Member Username: Ncarmine Post Number: 83 Registered: 6-2002 |
Yes, they do. There's a colored dot on the switch that matches a colored dot on the connector. | ||
| Jim E (Jimpo1)
Intermediate Member Username: Jimpo1 Post Number: 1725 Registered: 7-2001 |
Mine is locked down somehow, I tried to pull it up a little a while back because I had some burned bulbs in one of the switchs. I'll look again tonight if I can. | ||
| Rob Lay (Rob328gts)
Board Administrator Username: Rob328gts Post Number: 4673 Registered: 12-2000 |
There's a link on here to the 328 manual online, I don't know how easy it would be to get the info you're looking for. | ||
| Tillman Strahan (Tillman)
Member Username: Tillman Post Number: 578 Registered: 11-2001 |
No, you have to lift up the back set of switches. Mine just lifted without any problems, but it might supposed to be locked down and mine was missing whatever that locking element is. | ||
| Rob Lay (Rob328gts)
Board Administrator Username: Rob328gts Post Number: 4671 Registered: 12-2000 |
I will if someone doesn't get to it first. I don't know the first time I can look though. Can you see the wire connectors from the outside? | ||
| Tillman Strahan (Tillman)
Member Username: Tillman Post Number: 577 Registered: 11-2001 |
Can you take a look at the rearmost switches on your console and tell me if the colored dots under the switches correspond with the color on the wire connectors? I think mine were switched around a while back and might have contributed to the electrical fire. Thanks T |
