| Jeff Green (Carguy)
Member Username: Carguy Post Number: 484 Registered: 10-2002 |
Thanks again Bill. I do understand the no backing up rule. Not a good thing to do. It also makes total sense to me about the offset needle for the indicator. While at work tomorrow I'll try and do a "government project" and make something up. That is an excellent idea! I've said it a hundred times and I'll say it again, this fchat board is priceless! | ||
| Bill Sebestyen (Bill308)
Member Username: Bill308 Post Number: 513 Registered: 5-2001 |
One more point Jeff, your dial indicator must be aligned very close to the lifter axis. Any angular error will result in lift error. I had to make and fit an offset dial indicator needle to satisfy this requirement. | ||
| Bill Sebestyen (Bill308)
Member Username: Bill308 Post Number: 512 Registered: 5-2001 |
One other thought Jeff, the measurements must be taken in the engine running direction of rotation. No backing up is allowed for correct cam timing measurements. | ||
| Jeff Green (Carguy)
Member Username: Carguy Post Number: 482 Registered: 10-2002 |
You are correct Bill if my closing event reading is right, my cam lobe is not symmetrical. If my numbers are correct which I doubt...then a chunk of closing cam lobe ramp is "missing", I must recheck this again tomorrow. This is not an easy task for the inexperienced, so many little variations. JRV...thank you for playing "too much information" ! | ||
| Bill Sebestyen (Bill308)
Member Username: Bill308 Post Number: 510 Registered: 5-2001 |
Jeff, If your measurements are correct, your numbers are saying the cam is not symetrical. Your measurements show the cam duration of (17+28+180)=225 crank degrees. Max open should be 225/2-17= 95 degrees ATDC, if the cam is symetrical. Is something else happening here? | ||
| JRV (Jrvall)
Intermediate Member Username: Jrvall Post Number: 2299 Registered: 11-2002 |
>>I hear that Mars is closer to the Earth tonight than it has been in something like 60,000 years, so maybe that has something to do with it.<< wonder if that explains why I'm hornier than a 3 tailed tom cat??? | ||
| Jeff Green (Carguy)
Member Username: Carguy Post Number: 480 Registered: 10-2002 |
LOL....tanks fur da edgamication JRV ! I'll go through the procedure again tomorrow. It is odd that my numbers would be so close except for the closing event. Therefore it has to be something I did. Although..I hear that Mars is closer to the Earth tonight than it has been in something like 60,000 years, so maybe that has something to do with it. | ||
| JRV (Jrvall)
Intermediate Member Username: Jrvall Post Number: 2298 Registered: 11-2002 |
Unless you shaved one side of the cam can't see how it opens and peaks spot on yet closes way off? BTW: Gnats id what city folks calls dem, country folks calls dem knats..;-) | ||
| Jeff Green (Carguy)
Member Username: Carguy Post Number: 477 Registered: 10-2002 |
JRV, do you mean Gnat's Ass? (not Knat's Ass) Very primative, but it seems to "repeat" very well, and no I don't mean the gnat's ass. | ||
| JRV (Jrvall)
Intermediate Member Username: Jrvall Post Number: 2296 Registered: 11-2002 |
Is that a Knats Ass I see you using for a pointer??? | ||
| Jeff Green (Carguy)
Member Username: Carguy Post Number: 476 Registered: 10-2002 |
Not a bad idea at that....thanks Tom! | ||
| Tom Jones (Ferrarioldman)
Junior Member Username: Ferrarioldman Post Number: 145 Registered: 6-2002 |
Jeff, Try setting your valve clearance to 0 and measure your timing when the valve has depressed .5 mm. Intake opening and exhaust closing are your most important numbers. tj | ||
| Jeff Green (Carguy)

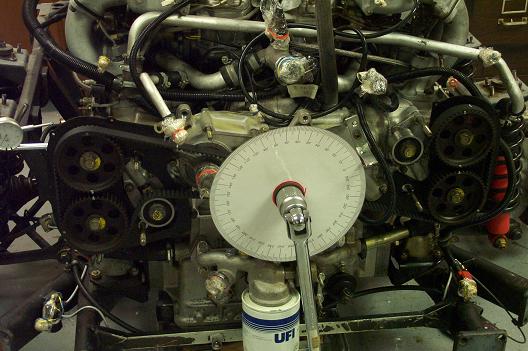

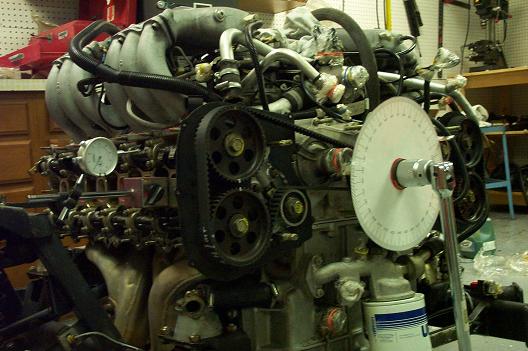

Member Username: Carguy Post Number: 473 Registered: 10-2002 |
