CZinger 21C

Discussion in 'General Automotive Discussion' started by ferrariformulauno, Mar 13, 2020.

This site may earn a commission from merchant affiliate links, including eBay, Amazon, Skimlinks, and others.

  1. ferrariformulauno

    ferrariformulauno Formula 3
    Rossa Subscribed

    Nov 18, 2008
    1,113
    33km from Maranello
    Full Name:
    Andre
  2. BJK

    BJK F1 Rookie

    Jul 18, 2014
    4,823
    CT
  3. BJK

    BJK F1 Rookie

    Jul 18, 2014
    4,823
    CT
    2015 Divergent Blade - Czinger 21C based on this


    .

  4. Jonathan19

    Jonathan19 Formula 3
    Silver Subscribed

    Sep 13, 2017
    1,148
    France
    Full Name:
    Jonathan

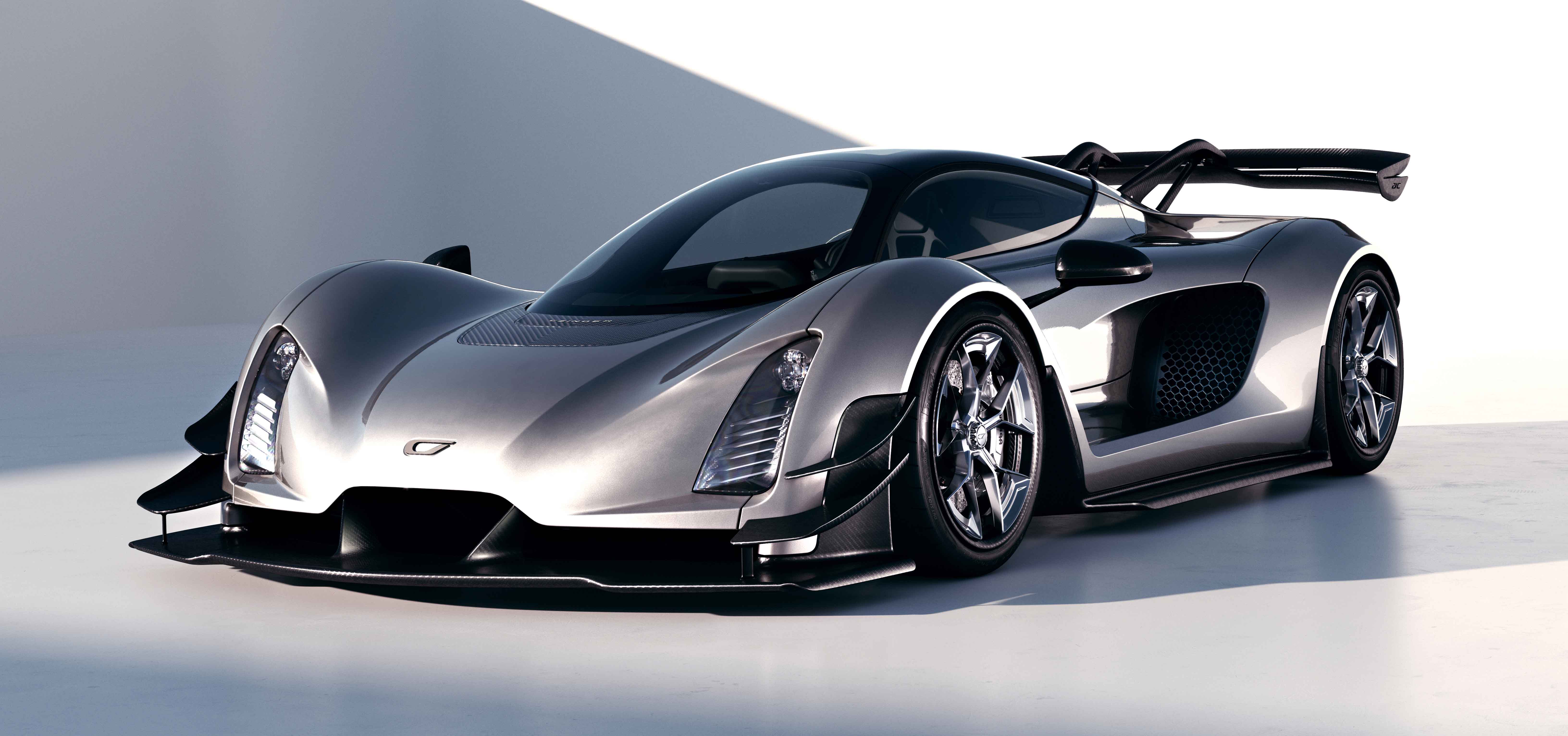

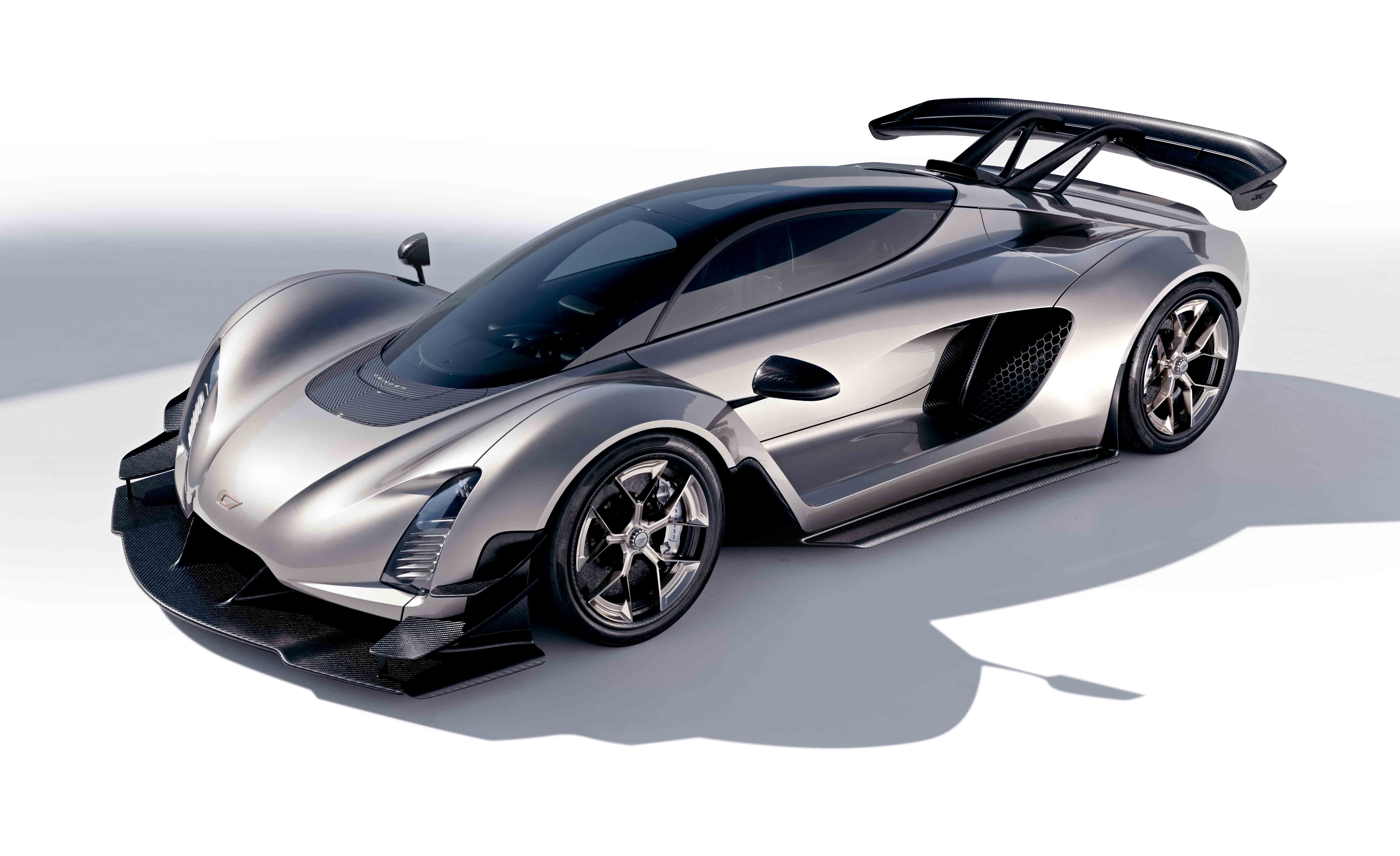

    Czinger unveils groundbreaking 21C production specification vehicle!

    Image Unavailable, Please Login

    Czinger, the trailblazing company that uses an in-house invented Human-AI production system to build state-of-the-art high-performance vehicles, unveiled today its final production spec 21C hypercar. The 21C expresses the apex of Human-AI creativity.

    The Czinger 21C, the first model in a series of exclusive performance vehicles – production will be limited to 80 cars – was created in part using additive manufacturing technologies. Each component manufactured using this technology is computationally engineered using AI, optimized for weight and performance, and is beautifully finished by hand. Czinger’s proprietary manufacturing technologies, in-house developed powertrain, and iconic design will guide its future family of vehicles.

    Image Unavailable, Please Login

    This new hypercar showcases significant updates since its first public introduction in March 2020 ahead of the cancelled Geneva International Motor Show, including an updated width of 2050 mm. With 1250 hp and a dry weight under 1240 kg, the 21C achieves a true 1:1 power-to-weight ratio. It also features all-wheel drive with a strong hybrid powertrain that includes:

    An in-house developed 2.88-liter, flat crank V8 with twin turbos located mid-vehicle
    Two high output electric motors, each powering a front wheel with torque vectoring
    An ultra-light, sequential seven-speed automated manual transmission gearbox
    Total output of 1250hp redlining at 11,000 rpm (A 100hp upgrade is offered providing 1350 hp)
    The 21C V8 is designed to use a range of fuels, including carbon recycled methanol and other e-fuels, so it can be run as a zero emission vehicle.

    The 21C’s hybrid powertrain uses the world’s most power dense production IC engine as its foundation. It is a 2.88 liter, flat-plane crank V8 with twin turbos located mid-vehicle. The V8 is coupled with an 800V electric drive and regen system. An e-motor drives each front wheel and the batteries are charged during operation both through regenerative braking and a Motor Generator Unit (MGU) using a gear drive that is attached to the IC engine. The total strong hybrid system delivers a peak output of 1250hp (1233bhp).

    Image Unavailable, Please Login

    The hypercar has a top speed up to 281 mph in optional low drag vmax configuration. Putting the driver and passenger in the center position for ultimate weight distribution, aero and driver engagement, its quarter mile time is 8.1 seconds, and it goes 0 to 62 mph (0 to 100 kph) in 1.9 seconds; 0 to 186 mph (300 kph) to 0 in 13.8 seconds and 0 to 248 mph (400 kph) to 0 in 27.1 seconds; 0 to 186 mph (300 kph) in 8.5 seconds; and 0 to 248 mph (400 kph) in 21.3 seconds. It has a >3:1 Lift / Drag Ratio with 615 kg downforce @ 100mph and 2,500 kg @ 200mph (high downforce configuration).

    The hypercar is designed, built, and manufactured in Los Angeles using cutting-edge technology tools that are integrated into a patented production system. This system includes automated AI based design and optimization software, patented additive manufacturing driven processes, high accuracy automated assembly and novel performance materials. This revolutionary technology enables Czinger’s design and engineering team to unlock performance and styling not before seen in the automotive industry.

    Computationally engineered, printed and assembled, each component is at the frontier of theoretical performance. For example, the front upper control arm is hollow with internal structures allowing it to achieve significant mass savings compared to a traditional tooled variant, thereby greatly reducing un-sprung mass and further driving the 21C’s dominating performance.

    Image Unavailable, Please Login

    The 21C is highly customizable both from a specification and individual personalization perspective. Presented in two fully homologated specifications, a lightweight high downforce configuration and a low drag configuration, both cars are powered by Czinger’s in-house powertrain and display its iconic design language and in-line seating architecture.

    Czinger first unveiled its groundbreaking 21C in 2020 and confirmed that its halo hypercar is just the start of a family of exclusive performance vehicles created for the 21st century – all using the company’s in-house developed design and manufacturing technology and proprietary drivetrain.

    Thecadster likes this.
  5. 95spiderman

    95spiderman F1 World Champ
    Silver Subscribed

    Nov 1, 2003
    15,298
    ny
    is this 2 seater with passenger behind the driver?
    interesting but i would bet never gets made

  6. BJK

    BJK F1 Rookie

    Jul 18, 2014
    4,823
    CT
  7. Jonathan19

    Jonathan19 Formula 3
    Silver Subscribed

    Sep 13, 2017
    1,148
    France
    Full Name:
    Jonathan
    21C Powertrain

    The 21C’s hybrid powertrain uses the world’s most power dense production IC engine as its foundation. It is a 2.88 liter, flat⁠-⁠plane crank V8 with twin turbos located mid⁠-⁠vehicle. The V8 is coupled with an 800V electric drive and regen system. An e⁠-⁠motor drives each front wheel and the batteries are charged during operation both through regenerative braking and a Motor Generator Unit (MGU) using a gear drive that is attached to the IC engine. The total strong hybrid system delivers a peak output of 1250hp (1233bhp).

    Image Unavailable, Please Login

    Seven⁠-⁠Speed Sequential Transaxle Gearbox

    Our powertrain includes a seven⁠-⁠speed sequential transaxle gearbox with a hydraulically actuated multi-plate clutch to complete the entire drivetrain, which is designed, developed and built by Czinger.

    Image Unavailable, Please Login

  8. Jonathan19

    Jonathan19 Formula 3
    Silver Subscribed

    Sep 13, 2017
    1,148
    France
    Full Name:
    Jonathan
  9. BJK

    BJK F1 Rookie

    Jul 18, 2014
    4,823
    CT
    wow!
    Senna (previous record holder w/Randy Pobst) 1:27:62
    21C ............................................... > > > 1:25:44 :eek:

    why are 'Comments' turned OFF for vid? usually it's to avoid too many negative comments. not sure what they're worried about. o_O

    This car really blurs the line: road car or race car. (as do cars like the Senna)

    .

    Thecadster likes this.
  10. 95spiderman

    95spiderman F1 World Champ
    Silver Subscribed

    Nov 1, 2003
    15,298
    ny
    guess it is for real. incredible lap time

  11. 95spiderman

    95spiderman F1 World Champ
    Silver Subscribed

    Nov 1, 2003
    15,298
    ny
    what is the engine? their own design or modified from somewhere else? 10k rpm is crazy esp for turbo.

  12. GregM

    GregM Rookie

    Oct 16, 2014
    31
    Huntersville
    Full Name:
    Greg Maga
    The engine is their own design, so is the transmission, so is the chassis etc.
    Lot of metal 3d printed content in this vehicle.


    Sent from my iPhone using FerrariChat

  13. 95spiderman

    95spiderman F1 World Champ
    Silver Subscribed

    Nov 1, 2003
    15,298
    ny
    Very impressive. Hope it succeeds

  14. sailfly

    sailfly Karting

    Dec 21, 2020
    56
    not 100% sure but the displacement and redline does sound suspiciously similar to the Hartley V8.
    The laptime comparison is pointless at best, the Czinger was not in a road legal configuration. For a car weighing 1250kg with 1250 hp with supposed 2500lbs of df you would be expecting a whole lot more than 2 seconds of improvement.
    Given his previous business exploits I would be hesitant to put anything down on anything involving Kevin Czinger, much less something with his name on it.

  15. Thecadster

    Thecadster F1 Veteran
    Rossa Subscribed

    Apr 27, 2017
    6,769
    Here’s the actual “record breaking” lap.


  16. tbakowsky

    tbakowsky F1 World Champ
    Consultant Professional Ferrari Technician

    Sep 18, 2002
    19,413
    The Cold North
    Full Name:
    Tom
    Outdated and old. With countries wanting to be rid of new gas car sales by 2030..who's gonna poney up to buy this antique?

    That said..it is pretty damn cool.

  17. Jonathan19

    Jonathan19 Formula 3
    Silver Subscribed

    Sep 13, 2017
    1,148
    France
    Full Name:
    Jonathan
  18. 95spiderman

    95spiderman F1 World Champ
    Silver Subscribed

    Nov 1, 2003
    15,298
    ny
    surprised no one else tried for a cota record since p1 which was prob close to 10 yrs ago. regardless this is some speed machine. congrats

  19. BJK

    BJK F1 Rookie

    Jul 18, 2014
    4,823
    CT
    Start-up and rev at 5:00


    .

  20. BJK

    BJK F1 Rookie

    Jul 18, 2014
    4,823
    CT
    updates/news? ..... pretty quiet really, just teasers o_O



    .
