Ferrari construction technique

Discussion in 'Australia' started by Q.., Sep 18, 2005.

This site may earn a commission from merchant affiliate links, including eBay, Amazon, Skimlinks, and others.

  1. Q..

    Q.. Formula 3

    Jun 29, 2004
    1,332
    Qld
    Full Name:
    Paul
    Nothing too exciting.....

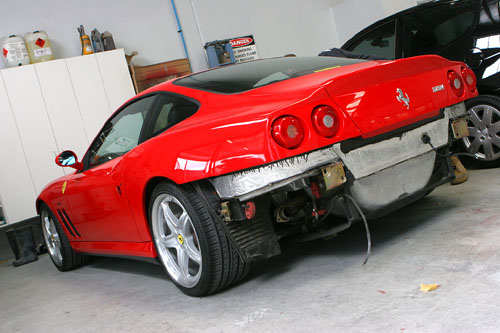

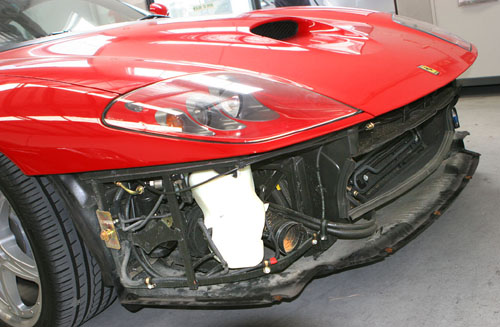

    We pulled the bumpers off the 575 to color code the sills.
    I am always amazed at the construction technique - pretty amazing in this day and age....

    [​IMG]
    [​IMG]

    1024 pics HERE

  2. ashsimmonds

    ashsimmonds F1 World Champ

    Feb 14, 2004
    14,385
    adelaide, australia
    Full Name:
    Humble Narrator
    #2 ashsimmonds, Sep 19, 2005
    Last edited by a moderator: Sep 7, 2017
    how many garlic breads do you think they have to buy to make that insulation stuff??
    Image Unavailable, Please Login

  3. ferrarifixer

    ferrarifixer F1 Veteran
    BANNED

    Jul 22, 2003
    8,520
    Melbourne
    Full Name:
    Phil Hughes
    Why are the tail boxes off... please tell me you haven't bought a drony tubi rear system for it.....

    Ferrari construction...!! Line another one up and see if it's the same....

  4. ashsimmonds

    ashsimmonds F1 World Champ

    Feb 14, 2004
    14,385
    adelaide, australia
    Full Name:
    Humble Narrator
    what system does the (scud's) CS have? i still dream about that sound... and apparently that wasn't even 'the good one'...

  5. ferrarifixer

    ferrarifixer F1 Veteran
    BANNED

    Jul 22, 2003
    8,520
    Melbourne
    Full Name:
    Phil Hughes
    If you want to hear the best sounding 360... maybe someone could bring something to record the 360C speciale of Tom warwick, this weekend at Calder.

    Siamese system with no cats, 2 tiny (cat replacement) silencers and 2 medium silencers... almost road legal and sweeeet....

  6. FFOUR

    FFOUR F1 Veteran

    Sep 14, 2004
    5,195
    Perth, Australia
    I think the 'the good one' is with no cats - but he put them back on for the trip to Alice.

  7. Q..

    Q.. Formula 3

    Jun 29, 2004
    1,332
    Qld
    Full Name:
    Paul
    LOL @ ash :)

    ferrarifixer
    the boxes are off because the spraypainter could not access the bumper bolts with them on..... or so i am told :-//

    had the tubi's for a while.
    there must be different grades of tubi's [???]
    ....these things are quiet - in fact, i would go so far as to say TOO quiet !

  8. ferrarifixer

    ferrarifixer F1 Veteran
    BANNED

    Jul 22, 2003
    8,520
    Melbourne
    Full Name:
    Phil Hughes
    #8 ferrarifixer, Sep 19, 2005
    Last edited by a moderator: Sep 7, 2017
    Oh ok, no biggy, but if they remove the lateral bolts that hold the whole inboard bracket on, rather than the actual bumper bolts themselves, the whole thing comes off in half the time.... bloody painters!!

    Yeah, I heard that Tubi had revised their design... I guess you have the new type... good for you then I guess, but they're too quiet.

    Maybe you need.....
    Image Unavailable, Please Login
    Image Unavailable, Please Login

  9. Q..

    Q.. Formula 3

    Jun 29, 2004
    1,332
    Qld
    Full Name:
    Paul

    hmmmm, the old lateral bolt trick - thanks :)
    it will be mentioned when they are telling me what a pain it was to remove, and how much time....

    these mufflers carry "550" stamping
    they are a straight through offset design
    weren't the originals a chamber design ?

    hmmmm....X pipe :) :) :)
    i just had one fitted to my XJR :D
    any increase in resonance through the floor ?

  10. ferrarifixer

    ferrarifixer F1 Veteran
    BANNED

    Jul 22, 2003
    8,520
    Melbourne
    Full Name:
    Phil Hughes
    resonance through floor...??

    Nope, surprised you even think it would. Maybe on your jag it's touching somewhere..... hand built by football hooligans.

  11. Q..

    Q.. Formula 3

    Jun 29, 2004
    1,332
    Qld
    Full Name:
    Paul
    the Jag is ok, but the X-pipe in my X5 was "noticeable".....
    LOL @ football hooligans :p

  12. goober

    goober F1 World Champ

    Nov 15, 2004
    15,895
    Adelaide & Thredbo
    Full Name:
    Buddy Miles
    i thought ferraris were born not constructed

  13. chewy7

    chewy7 Formula Junior

    Aug 6, 2005
    410
    Brisbane, QLD.
    Full Name:
    Shane


    Wow That 575 Looks amazing mate, it should look good with colour coded sills.

    With that X-pipe, where abouts did you get that put in on the X5? My bro got 2 1/4 quarter inch, cat-back with straight through mufflers. It made a huge difference, you can really hear the V8 roaring. Can post a vid up if anyone is interested, but you can hear a crackle in it though, needs a X-pipe apparently.

    Cheers
    Shane

  14. ashsimmonds

    ashsimmonds F1 World Champ

    Feb 14, 2004
    14,385
    adelaide, australia
    Full Name:
    Humble Narrator
    post the vid up, or let me know if you need it hosted, can't get enough of Ferrari noise

  15. FFOUR

    FFOUR F1 Veteran

    Sep 14, 2004
    5,195
    Perth, Australia
    isn't he talking about the X5?

  16. Q..

    Q.. Formula 3

    Jun 29, 2004
    1,332
    Qld
    Full Name:
    Paul
    Thanks :D ....yeah, I am hoping the sills pick it up a little.

    Do you mean where on the X5 it was installed ?
    or who installed it ?

    Post the vid !!!
    here is my .wav file of my X5....
    CLICKY****

  17. ashsimmonds

    ashsimmonds F1 World Champ

    Feb 14, 2004
    14,385
    adelaide, australia
    Full Name:
    Humble Narrator
    oh ok fergit it i can just drive past any primary school to hear that thanks
