Need quick help...Measure your exhuast shield

Discussion in '348/355' started by Lars_vet, Nov 2, 2007.

This site may earn a commission from merchant affiliate links, including eBay, Amazon, Skimlinks, and others.

  1. Lars_vet

    Lars_vet Formula Junior

    Feb 25, 2007
    603
    On the open road
    Full Name:
    Lars
    #1 Lars_vet, Nov 2, 2007

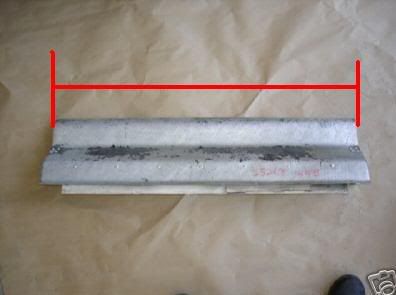

    Hi I need a measurement, to get the lenght of the exhuast shields on a 90 348. Think they are the samme all year though.

    My car is 1.5 hour away, and need the measuremnt asap... I would be really appriciatet!

    I actually think tthe to shileds are the same lenght, but sure here either..


    [​IMG]
    [​IMG]

  2. Lars_vet

    Lars_vet Formula Junior

    Feb 25, 2007
    603
    On the open road
    Full Name:
    Lars
    #2 Lars_vet, Nov 2, 2007
    somebody must a measuring tape...

  3. speedy_sam

    speedy_sam F1 Veteran

    Jul 13, 2004
    5,559
    TX
    Full Name:
    Sameer
    #3 speedy_sam, Nov 2, 2007
    I have a 91 Ts with a two piece exhaust shield.

    The rear shield covering the tail lights measures 31.3 inches from the mount and remains this length for the most part. It tapers to 30.5 inches in the last inch or so.

    The front shield measures 29.75 inches all through. Both these shields bolt into the crossmember below

  4. Lars_vet

    Lars_vet Formula Junior

    Feb 25, 2007
    603
    On the open road
    Full Name:
    Lars
    #4 Lars_vet, Nov 2, 2007
    great thanks!!!.... now I can cut my carbon fiber panels clean

  5. speedy_sam

    speedy_sam F1 Veteran

    Jul 13, 2004
    5,559
    TX
    Full Name:
    Sameer
    #5 speedy_sam, Nov 2, 2007
    Last edited by a moderator: Sep 7, 2017
    Some pictures to help you along the way..

    1. Looking at the shields from the rear of the car.
    2. Rear shield (facing the tail light) mount
    3. Front shield (facing the oil filter) mount
    4. Both shields looking from the rear wheel. Note that there is a vertical gap of about 1.5 inches between the two shields with the rear shields on top.
    5. Different view of the two shields
    Image Unavailable, Please Login
    Image Unavailable, Please Login
    Image Unavailable, Please Login
    Image Unavailable, Please Login
    Image Unavailable, Please Login

  6. Lars_vet

    Lars_vet Formula Junior

    Feb 25, 2007
    603
    On the open road
    Full Name:
    Lars
    #6 Lars_vet, Nov 2, 2007

    thank you! helps alot really!
