What deters you from modification?

Discussion in 'Ferrari Discussion (not model specific)' started by C.Essman, May 2, 2013.

This site may earn a commission from merchant affiliate links, including eBay, Amazon, Skimlinks, and others.

  1. C.Essman

    C.Essman Rookie

    Apr 26, 2013
    10
    Chicago
    Full Name:
    Chris
    Or, conversely, if you had no deterrence.. what would you do?

  2. WILLIAM H

    WILLIAM H Three Time F1 World Champ

    Nov 1, 2003
    35,532
    Victory Circle
    Full Name:
    HUBBSTER
    Welcome to Fchat

    Nothing deters me from modding

    Check my profile :)

  3. PhilNotHill

    PhilNotHill Two Time F1 World Champ
    Owner

    Jul 3, 2006
    27,855
    Aspen CO 81611
    Full Name:
    FelipeNotMassa
    Problem: Voiding the warranty.

    the car for me is perfect right now I would do nothing.

  4. PV Dirk

    PV Dirk F1 Veteran

    Jul 26, 2009
    5,401
    Ahwatukee, AZ
    I can barely keep up financially with keeping my car in top operating condition. I enjoy the car for what it is. However, if my ignition failed I'd have no hesitation with going to aftermarket as I understand the options are similar cost with superiour performance.

    Mostly it's just who I am. I've never done mods to my cars. I've had a few that had lots of potential but I guess I go with the thought of, if it aint broke, don't fix it. Plus I'm cheap.

    And as William H said, welcome.

  5. CornersWell

    CornersWell F1 Rookie

    Nov 24, 2004
    4,896
    Depends on the modification.

    However, generally, the amount of engineering and development that goes into modern vehicles is substantial. All kinds of load calculations, stress testing and materials analysis are made in order to ensure they work as expected and are safe.

    When you start upgrading this or improving that, those stresses change. For example, if you lower the profile of your tires on larger diameter rims, do you now stress the suspension differently? Will it perform as it should? Or, if you add a twin-turbo charging system, what stresses will change internally in the motor? Or, at the transmission?

    Change the optimization mix, and you don't know what you get. I've been through this with race cars. You fix what you break, and then you break something else. Fix that, and so on.

    CW

  6. C.Essman

    C.Essman Rookie

    Apr 26, 2013
    10
    Chicago
    Full Name:
    Chris
    Thanks!

    That is quite a stable. I got a laugh out of the 3000GT VR4 tucked away in the list! "Exotic, exotic, exotic, mitsubishi, exotic, exotic.."

    I would estimate that (warranty) is one of the biggest hang-ups for a late model, certainly.

    Now would it turn you off if the aftermarket ignition, perhaps some sort of CDI system would require you to tune-in the dwell, etc. Would you be keen on learning and doing this yourself?

    See, and this type of engineering challenge is precisely what pushes me to modify mine. My cars become rolling laboratories, save the one I designate as a DD for the period I am working on another.

    As a long time lurker here, there is a sort of conspicuous divide between those who would modify a car of such caliber as a ferrari.. any ferrari, and those who consider it near blasphemy. So I was curious to start a dialogue of sorts and get an idea for the spectrum in reasoning.

    I try to perform changes in a controlled manner, isolating individual tweaks and take as much data as possible to see what I can infer from it. Then apply that towards my next move, trying to do this in a preventative manner to identify weak-links before they fail.

    As a result I end up having a multitude of sensors and multiple sample points in every system, where possible.

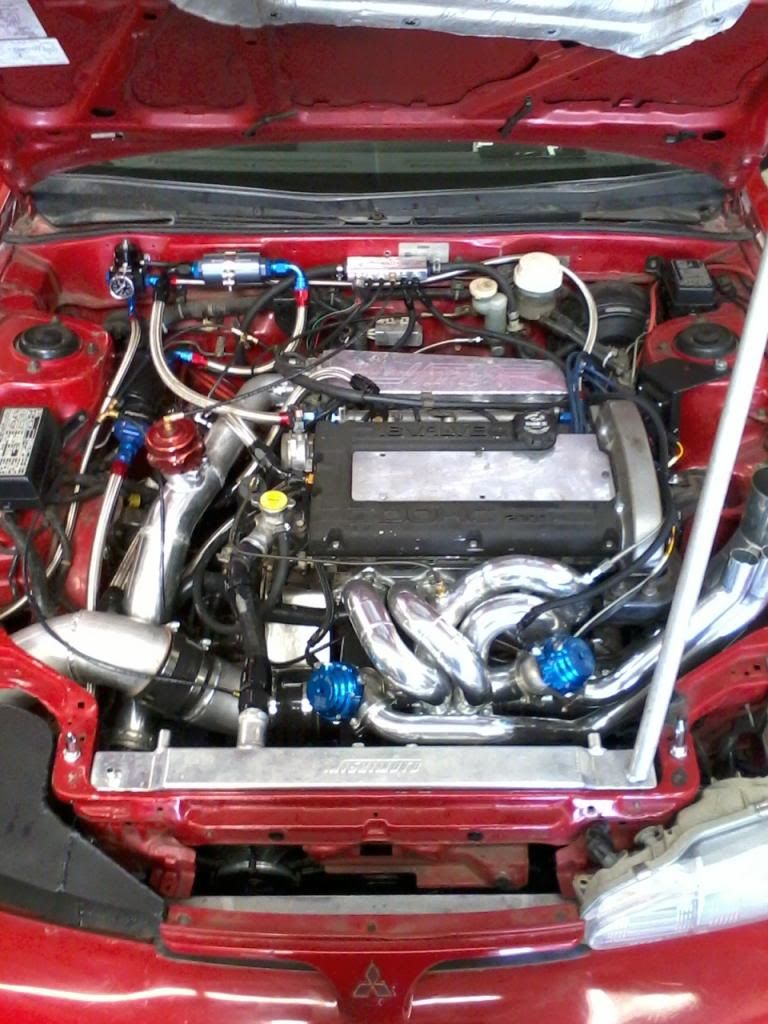

    Taken to a personal "extreme" my current project, the result of five years of design, trial/error, data-logging and attempts at upgrading on an uglier iteration of the same chassis:
    [​IMG]

    An example of this would be the charge piping and exhaust side. I take intake pressure and temperature in multiple points to compare. This combination is being put on the dyno before the end of the month and one of the things I am looking to determine is the pressure drop across the system from turbo to manifold with everything in between. Then I plan to start breaking it down stage by stage. Afterwards, I will activate the 3 nozzle water injection (progressive) system and repeat the process.

    So for starters one sensor is mounted after the turbo, pre-intercooler:
    [​IMG]

    And the other is mounted in a vacuum block tied to the manifold (post-throttle):
    [​IMG]

    Similarly on the exhaust side, taking temperature at the turbine inlet and outlet, as well as comparing turbine drive pressure to boost pressure. I also have two oxygen sensors as a sanity check. One for factory narrowband operation, and another wideband UEGO for open-loop tuning
    [​IMG]

    Likewise, I do the same for fuel pressure as well as oil pressure on both the engine and turbo, shown here is the sensor on the turbo feed line:
    [​IMG]

    All of which is then sent to gauges on the dash and logged via ECU connected to a lap-top.
    [​IMG]

    http://imageshack.us/a/img268/6660/gt4088r1.png

    This knowledge is then applied to vehicles I modify and tune for friends and clients, whether they are racing or just looking to have fun. I would ultimately like to apply this to a project Ferrari somewhere down the line, something produced in volume of course.

    Which is primarily why I am here, to learn as much as I can ahead of time. As it may be a while before finding myself in such a position there is ample opportunity. (Apologies for the essay!)

  7. rdefabri

    rdefabri Three Time F1 World Champ

    Jun 4, 2008
    33,571
    NJ
    Full Name:
    Rich
    Would you modify the Sistine Chapel?

    I guess it depends on the level of mod - something not so apparent, I'd be ok with. Something gaudy - I'm not ok with.

  8. Napolis

    Napolis Three Time F1 World Champ
    Honorary Owner

    Oct 23, 2002
    32,118
    Full Name:
    Jim Glickenhaus
    #8 Napolis, May 2, 2013
    Last edited by a moderator: Sep 7, 2017
    True but nothing deters me.

    (Engineered front and rear lift kit for "Stradalization"
    Image Unavailable, Please Login

  9. C.Essman

    C.Essman Rookie

    Apr 26, 2013
    10
    Chicago
    Full Name:
    Chris
    #9 C.Essman, May 2, 2013
    Last edited: May 2, 2013
    Wow. That is pornography.

    To me it's very cool that you share this stuff (re: P4/5 Mods) so casually here, and take the time to chime in on sites like Jalopnik as well. I hope to work my way into a manner of living that would allow it some day. Cheers.

  10. Napolis

    Napolis Three Time F1 World Champ
    Honorary Owner

    Oct 23, 2002
    32,118
    Full Name:
    Jim Glickenhaus
    #10 Napolis, May 2, 2013
    Last edited by a moderator: Sep 7, 2017
  11. C.Essman

    C.Essman Rookie

    Apr 26, 2013
    10
    Chicago
    Full Name:
    Chris
    This vertical rod/heim-joint on the aft(?) mount of the upper arm in the first picture is missing in the shot of the new arms..
    [​IMG]

    What function did this provide? Linkage to a third member of some sort?

    What was employed in its' stead?

  12. Napolis

    Napolis Three Time F1 World Champ
    Honorary Owner

    Oct 23, 2002
    32,118
    Full Name:
    Jim Glickenhaus
    It's part of the lift system we're engineering. Both front and rear will have it.

  13. Tokyo Drftr

    Tokyo Drftr Formula 3

    Jan 18, 2009
    2,461
    UA-USA-JP
    Full Name:
    Ро&#1081
    i have seriously modded every car i have owned.
    As for the ferraris.............Seriously think, Old man Enzo would not have cared in the least. Especially if you were making it faster

  14. C.Essman

    C.Essman Rookie

    Apr 26, 2013
    10
    Chicago
    Full Name:
    Chris
    I just found your thread on this. Tremendous effort!

    Is the car now always going to be at a ride height capable of crawling over speed bumps or will it be some sort of air/hydraulic lift for when the occasion presents its self?

    Has the change in geometry from the lift required a different spring/valving scheme?

  15. C.Essman

    C.Essman Rookie

    Apr 26, 2013
    10
    Chicago
    Full Name:
    Chris
    That has been my take on what his perspective would be as well.

    Any links or pictures perhaps you can share of your 308s? I've seen where you have alluded to them, but have yet to stumble on a visual.

  16. Michael B

    Michael B F1 Rookie
    Owner

    Apr 28, 2004
    3,762
    US of A
    Full Name:
    Michael
    I never deter from an enhancement. But I am selective.

  17. Napolis

    Napolis Three Time F1 World Champ
    Honorary Owner

    Oct 23, 2002
    32,118
    Full Name:
    Jim Glickenhaus
    No the lifters will only be used for speed bumps and driveways and trailer loading. Normal ride height will be as we raced at the Ring about 5 inches.

  18. kverges

    kverges F1 Rookie

    Nov 18, 2003
    3,179
    Dallas
    Full Name:
    Keith Verges
    Loss of reliability or drivability can often result from modifications. A modern engine modification requires the ability to properly re-map the ECU and that is extremely difficult to do correctly. Also, modern high-revving vavletrains are very carefully engineered. Cam changes can turn the engine into a hand grenade.

    Cosmetic stuff is fine, if that is your thing.

  19. SAFE4NOW

    SAFE4NOW F1 Veteran
    Sponsor Owner

    Aug 25, 2004
    5,836
    Dallas Texas
    Full Name:
    If you know you know
    As long as " you " take ownership of the effect of said " upgrade " then there is nothing wrong with it. And , knowning your rights when it comes to the Mag.Moss warranty act, you will be fine.
    http://business.ftc.gov/documents/bus01-businesspersons-guide-federal-warranty-law

    It's went a person installs the aftermarket stereo, instrument cluster intergrated radar, and aftermarket suspension. Then comes in because of an electrical issue, cluster failure, and suspension noise, and wants it all covered under factory warranty that it becomes an issue.

    My motto has always been, tell me what you have and we will work to help the best we can. If I find out about it and you didnt tell me, I'm charging you double... < wink >

    I dont think there is anything wrong with it, look at a few of my previous cars...

    S

  20. C.Essman

    C.Essman Rookie

    Apr 26, 2013
    10
    Chicago
    Full Name:
    Chris
    Have those things kept you from altering your vehicles?

    I am fairly comfortable with these items, tuning the ECU myself and am currently in the process of measuring tip heights/shimming my valve springs to increase seat pressure to avoid bouncing that may throw rocker arms at low 5 digit rpm.

    This will be the 4th set of cams I've had in this motor. This configuration however will be coming close to the limits of what the head geometry will allow.

  21. Napolis

    Napolis Three Time F1 World Champ
    Honorary Owner

    Oct 23, 2002
    32,118
    Full Name:
    Jim Glickenhaus
    #21 Napolis, May 2, 2013
    Last edited: May 2, 2013
    If you know what you're doing this is no big deal. We took a Ferrari GT2 engine from 430 to 530 HP (Air restricted to GT2 standards) and finished a 24 first in class and after that the engine was fine. We did change all internals and bored out the block and used Motec but people do this sort of thing all the time.

    A lot of people TT all sorts of motors on Ferrari's/Lambo's etc and they run fine and MUCH faster than stock motors.

  22. CornersWell

    CornersWell F1 Rookie

    Nov 24, 2004
    4,896
    Napolis,

    To be fair, your capabilities are beyond those of most. You can retain qualified engineers to do CAD/CAM/CAE work. You can get time on 5-axis lathes and water cutters for custom fabrication. You can do what many cannot. It's neat stuff, the work you're doing, but that is more bespoke engineering as opposed to modifications, don't you think?

    CW

  23. Turbopanzer

    Turbopanzer F1 World Champ

    Oct 2, 2011
    11,120
    Under a bonnet
    Full Name:
    Panzer
    Port grinder please!!!! :D

  24. mlambert890

    mlambert890 Formula Junior

    Apr 2, 2002
    389
    CA
    #24 mlambert890, May 2, 2013
    Last edited: May 2, 2013
    Yes this. 100% agree. I think the stuff Napolis is displaying is *hugely* interesting and incredibly impressive, but lets be clear that this is *not* what is being discussed when people talk about "modding" in 99.99% of cases.

    So I guess the answer for the OP would be "because I lack the background and resources of an advanced mechanical engineer" :D

    To me this question seems obvious. Modding is the exception, not the default so a better question would probably be why *does* one mod?

    Folks that don't choose to, quite likely simply don't feel that the car they own needs any improvement, or if they do feel it does, don't feel qualified to actually make that improvement. Either because it is too risky, or too expensive, or they just don't have the knowledge and background.

    I've never owned a Ferrari, but I can say with many lower performance cars, there is a *rush* to modification almost as a default by "enthusiasts". I think, despite the generally accepted forum "wisdom", in a huge number of cases they *go backwards* and take away from the car. You can never tell them that though. They'd *swear* that their "BBK" and "coilovers" have turned the thing into a world beater. This was the case all the time on the NSX forum where the few long time owners with a ton of track time would try to convince the new owners (flooding in as the car depreciated) to *learn the car* and *improve their skill* before presuming to change something engineered and hand made by some of the best engineers in history.

    Most people don't come *near* their cars potential, much less find an area where they can quantify that it needs legitimate improvement. The vast majority of mods you see on the street are either for anecdotally accepted improvement "Brembos = better!" or to get more performance in a straight line (145MPH trap speed yo!). Obviously talking about performance mods here and not appearance or creature comfort which are another matter entirely.

    Napolis is obviously an absolute exception to this as are folks who track their car extensively, reach its potential, find areas where they feel it needs tweaking, and then do that tweaking in an educated manner. These are real edge cases though. Few people have that level of expertise and ability (and resources).

    Now consider that Ferrari is a car that, out of the box, is already in the top .0x% of performance. And generally with mature owners who will seek to explore their own limits before assuming the car has a deficiency. I don't think it's a surprise that not so many Ferraris are extensively modified. It's a daunting proposition that requires a lot more money and expertise then doing so on a much lesser car that hasn't been engineered for maximum performance potential. A Civic is cheap and disposable and was engineered primarily for gas mileage and safety. It's limits are designed around commuting and reliable transport around town. On a car like that it can be fun, and low risk, to see what it would take to make it into a "high performance" version of itself. A Ferrari 458? Not so much :D It's already about as much of a "high performance version of itself" as it can get. Unless the "mod" is adding more cup holders to try to make it more pedestrian ;)

  25. spirot

    spirot F1 World Champ

    Dec 12, 2005
    15,139
    Atlanta
    Full Name:
    Tom Spiro
    Were money not an issue - I'd like a 458 with the ALMS body style - interior all in alcantara...
